Solvent U-PVC Fittings • CH Products

Elbow 45° Solvent Socket

Aquaram CH Elbow 45° Solvent Socket Image

Code	Weight ( Kg )	PN (bar)	Tube (mm)	DN (mm)
7102016	0.009	16	16	10
7102020	0.015	16	20	15
7102025	0.024	16	25	20
7102032	0.040	16	32	25
7102040	0.073	16	40	32
7102050	0.135	16	50	40
7102063	0.189	16	63	50
7102075	0.332	16	75	65
7102090	0.628	16	90	80
7102110	0.880	16	110	100
7102125	1.210	16	125	110
7102140	1.610	16	140	125
7102160	1.718	10	160	150
7102220	3.185	10	220	175
7102225	5.836	10	225	200
7102250	6.100	10	250	225

Elbow 90° Solvent Socket

Aquaram CH Elbow 90° Solvent Socket Image

Code	Weight ( Kg )	PN (bar)	Tube (mm)	DN (mm)
7101016	0.010	16	16	10
7101020	0.015	16	20	15
7101025	0.030	16	25	20
7101032	0.048	16	32	25
7101040	0.085	16	40	32
7101050	0.141	16	50	40
7101063	0.224	16	63	50
7101075	0.387	16	75	65
7101090	0.729	16	90	80
7101110	1.192	16	110	100
7101125	1.630	16	125	110
7101140	2.094	16	140	125
7101160	2.355	10	160	150
7101200	4.220	10	200	175
7101225	6.585	10	225	200
7101250	7.795	10	250	225

Elbow 90° H/M Solvent Socket

Aquaram CH Elbow 90° H/M Solvent Socket Image

Code	Weight ( Kg )	PN (bar)	Tube (mm)	DN (mm)
7101550	0.134	16	40-50-50	32
7101551	0.197	16	50-63-50	40
7101563	0.256	16	50-63-63	50

Cross Solvent Socket

Aquaram CH Cross Solvent Socket Image

Code	Weight ( Kg )	PN (bar)	Tube (mm)	DN (mm)
7109020	0.038	16	20	15
7109025	0.060	16	25	20
7109032	0.099	16	32	25
7109040	0.169	16	40	32
7109050	0.220	16	50	40
7109063	0.399	16	63	50
7109075	-	16	75	65
7109090	-	16	90	80
7109110	-	16	110	100

Tee 90° Solvent Socket

Aquaram CH Tee 90° Solvent Socket Image

Code	Weight ( Kg )	PN (bar)	Tube (mm)	DN (mm)
7103016	0.014	16	16	10
7103020	0.024	16	20	15
7103025	0.037	16	25	20
7103032	0.061	16	32	25
7103040	0.119	16	40	32
7103050	0.225	16	50	40
7103063	0.313	16	63	50
7103075	0.560	16	75	65
7103090	1.022	16	90	80
7103110	1.518	16	110	100
7103125	2.100	16	125	110
7103140	2.660	10	140	125
7103160	2.941	10	160	150
7103200	5.185	10	200	175
7103225	8.530	10	225	200
7103250	9.850	10	250	225
7103315	-	10	315	300
7103400	-	4	400	400

Socket PVC Socket

Aquaram CH Socket PVC Socket Image

Code	Weight ( Kg )	PN (bar)	Tube (mm)	DN (mm)
7105016	0.007	16	16	10
7105020	0.012	16	20	15
7105025	0.020	16	25	20
7105032	0.034	16	32	25
7105040	0.054	16	40	32
7105050	0.087	16	50	40
7105063	0.142	16	63	50
7105075	0.242	16	75	65
7105090	0.408	16	90	80
7105110	0.711	16	110	100
7105125	0.966	16	125	110
7105140	1.262	16	140	125
7105160	1.354	10	160	150
7105200	2.515	10	200	175
7105225	3.385	10	225	200
7105250	4.460	10	250	225
7105315	8.845	10	315	300
7105400	12.90	10	400	400

Reducing Socket PVC

Aquaram CH Reducing Socket PVC Image

Code	Weight ( Kg )	PN (bar)	Tube (mm)	DN (mm)

Union 3 Pieces Socket BSP

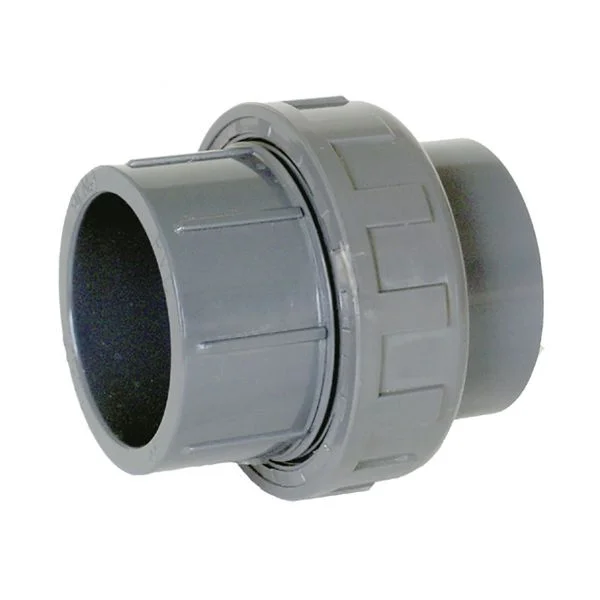

Aquaram CH Union 3 Pieces Socket BSP Image

Code	Weight ( Kg )	PN (bar)	Tube (mm)	DN (mm)
7414016	0.023	16	16	10
7414020	0.039	16	20	15
7414025	0.065	16	25	20
7414032	0.075	16	32	25
7414040	0.143	16	40	32
7414050	0.177	16	50	40
7414063	0.283	16	63	50
7414075	0.510	16	75	65
7414090	0.711	16	90	80

Female Cap Solvent PVC Socket

Aquaram CH Female Cap Solvent PVC Socket Image

Code	Weight ( Kg )	PN (bar)	Tube (mm)	DN (mm)
7107016	0.003	16	16	-
7107020	0.007	16	20	-
7107025	0.013	16	25	-
7107032	0.023	16	32	-
7107040	0.041	16	40	-
7107050	0.082	16	50	-
7107063	0.111	16	63	-
7107075	0.199	16	75	-
7107090	0.359	16	90	-
7107110	0.537	16	110	-
7107125	0.824	16	125	-
7107140	1.092	16	140	-
7107160	1.253	10	160	-
7107200	1.934	10	200	-
7107225	2.441	10	225	-
7107250	3.576	10	250	-
7107315	6.725	10	315	-
