Large Size Horizontal Sand Filter
( For commercial pools, aquatic parks and aquariums and large scale waterland )
Horizontal Giant! Custom-Built Available
Horizontal sand filter provides a larger filtration area for installation space optimization. Emaux manufactures horizontal sand filter up to 3 meters in diameter and 10 meters in length. Emaux is also able to build to individual project requirements. Dimensions can be modified according to project specifications.
Product Features
Filtration System
LateralsDesign Filtration Velocity
30㎥/h/㎡Tank Material
Bobbin-wound Reinforced FiberglassMax Operating Pressure
36psi(2.5bar) / 58psi (4.0bar)Max Temperature
43°C (109°F)Suggested Size of Media
0.5mm - 0.8mm / 1.0 - 2.0mm
Product Highlights
Filter Advantages
1Multi-construction layers: non-corrosive and chemical protective.
2UV resistance, suitable for operation under prolonged sunlight.
3Inner filtration system with evenly spread laterals enhances filtration performance.
4Bobbin wound fiberglass reinforcement with polyester resin.
5Service manhole for easy maintenance.
6Low ratio of thermal expansion.
7Long service life and nil maintenance.

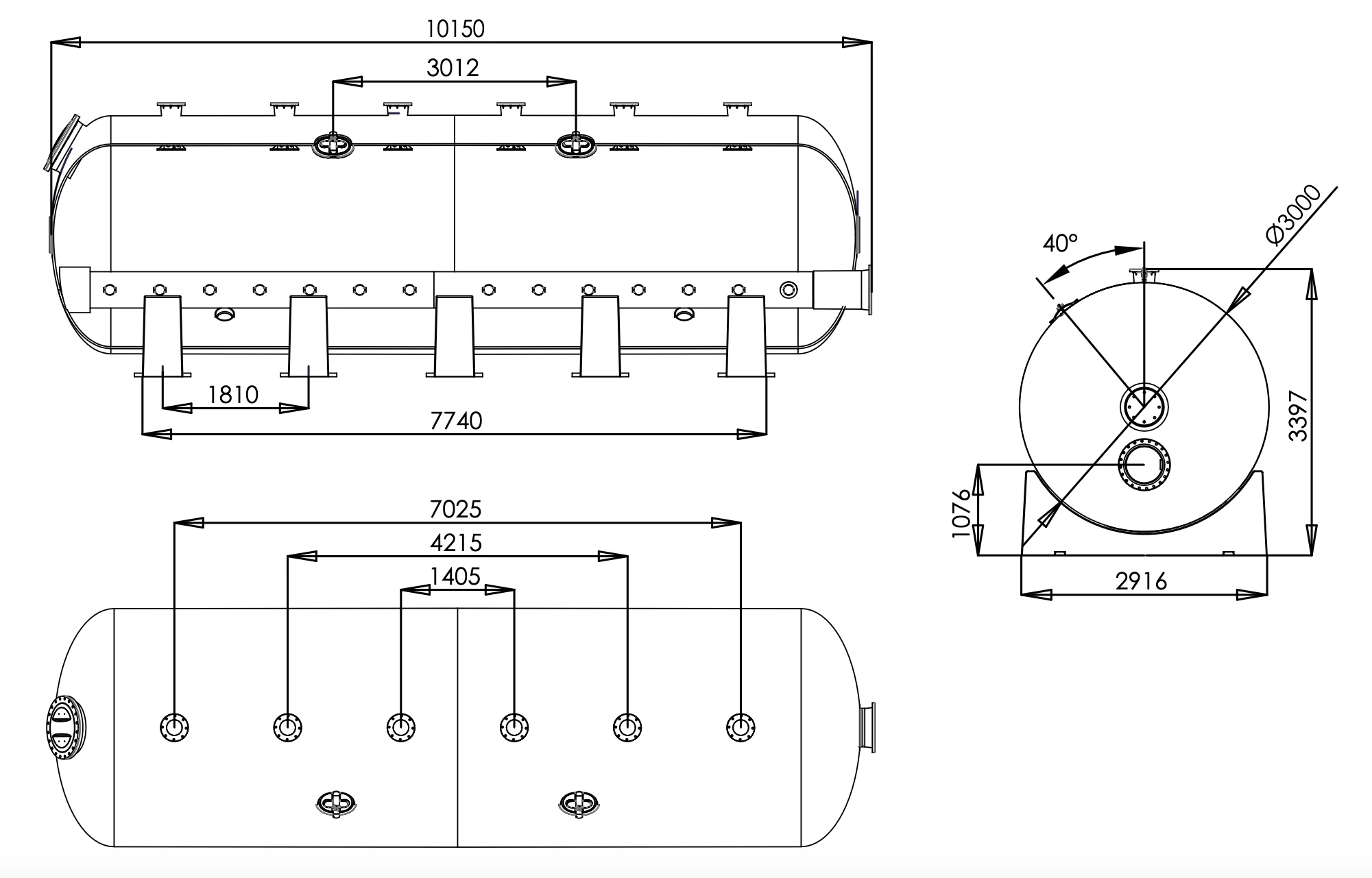

Typical Product Dimensions
( mm )
