NanoTech UV-C Disinfection System
( For pool & spa, fish pond, and drinking water system )
A non-chemical approach to water sanitization.
At a wavelength of 253.7nm, UV-C light is a very powerful germicide. It deactivates the DNA of bacteria, viruses and other pathogens, destroying their ability to multiply and cause disease. UV-C is also favoured by the pool industry for its ability to break down and remove chloramines, which cause eye, skin and nose irritation and breathing difficulties.
Advantages:- User-friendly: Easy installation and maintenance. The optional timer can control the running operation hours.
- Strong and durable: Robust housing in AISI 2205 stainless steel for anti-corrosion long life. Professional quality UV lamp offers a life time over 9,000 (to 12,000) hours.
- High efficiency: The mirror-polished interior of the housing increases the UV reflection rate and thus enhances the work efficiency by up to 35%.
- High transmission: High-quality quartz sleeve ensures nearly 100% transmission of UV-C at 254nm. It offers protection against air and water flow, breakage, and temperature fluctuations.
- Environmental-friendly: It reduces the chlorine consumption of up to 70%. Also water renewal is reduced due to fewer by-products formed.
- Better protection: The disinfected water is free of unpleasant smells and does not irritate the eyes, because of the significant reduction in the number of chloramines. No risk of allergies, and your pool is protected against pathogenic organisms and algae.

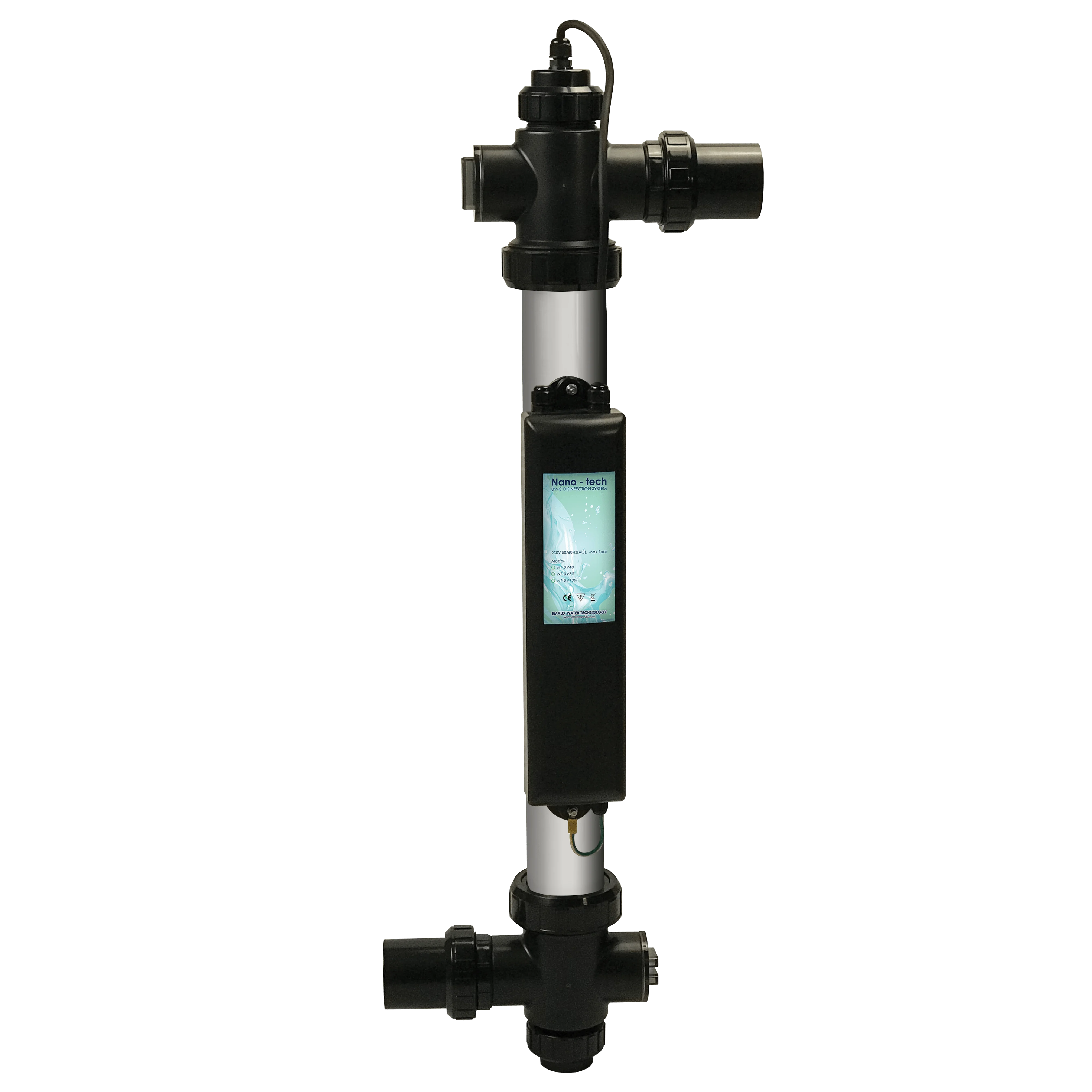

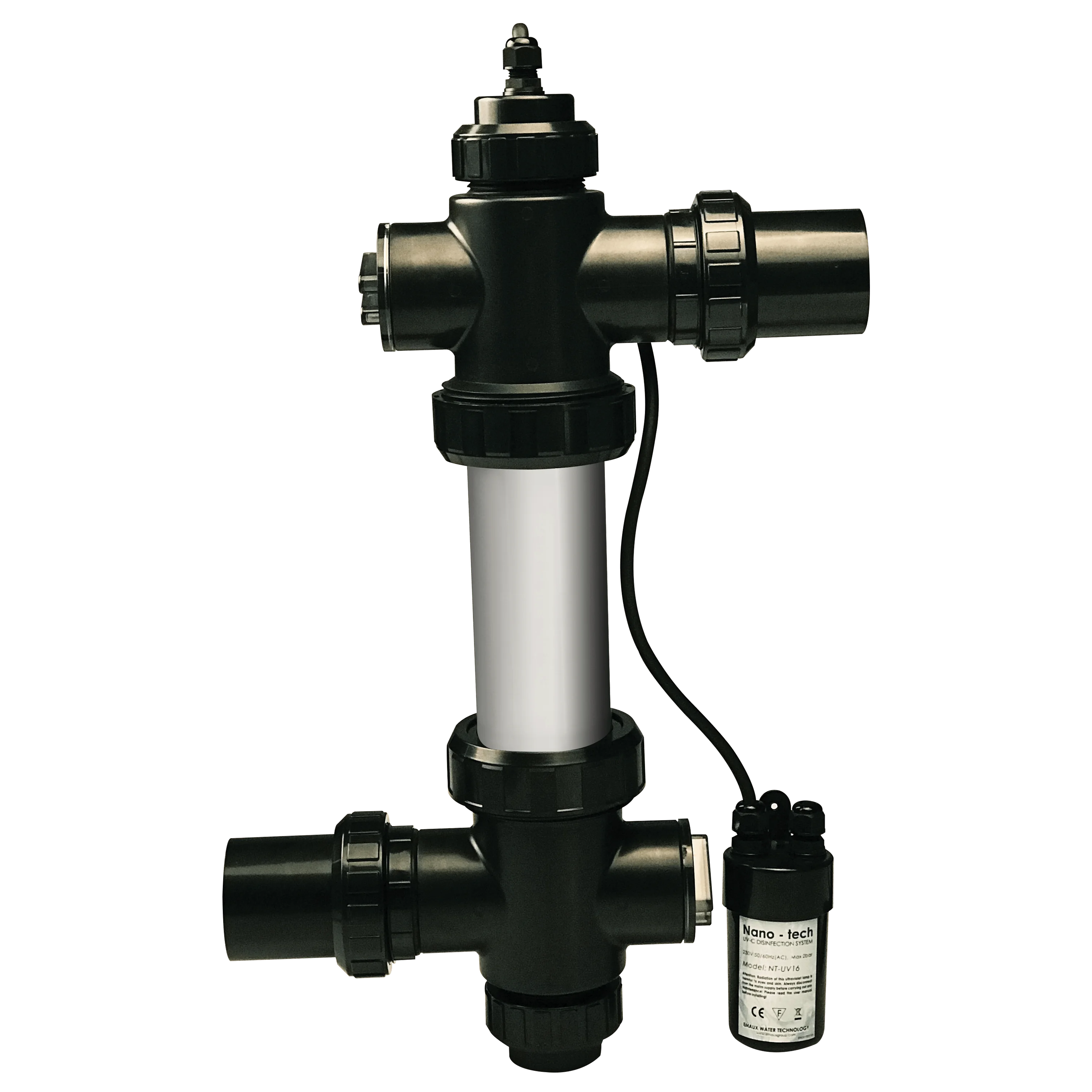

NanoTech UV-C Standard
These UV systems combine all the benefits listed above in a very compact design. Another advantage is that the lamps are single ended and can be easily replaced.
Main Applications:- Residential swimming pools
- Fish ponds
- Drinking water
| Code (230V) | Code (120V) | Model | Max Flow Rate ( m³/h ) | Pool Volume ( m³ ) | Input Power | Maximum Pressure | Connections | Electric Ballast | Maximum Current ( A ) | UV Lamp Lifetime ( hr ) |
|---|---|---|---|---|---|---|---|---|---|---|
| 9130401 | 9130415 | NT-UV16 | 7 | 15 | 16W | 3 bar | 1.5" / 50mm or 2" / 63mm | 120-240V AC; 50-60Hz | 0.29 | 9,000 |
| 9130402 | 9130409 | NT-UV40 | 20 | 40 | 40W | 3 bar | 1.5" / 50mm or 2" / 63mm | 120-240V AC; 50-60Hz | 0.29 | 9,000 |
| 9130404 | 9130414 | NT-UV75 | 25 | 75 | 75W | 3 bar | 1.5" / 50mm or 2" / 63mm | 120-240V AC; 50-60Hz | 0.57 | 9,000 |

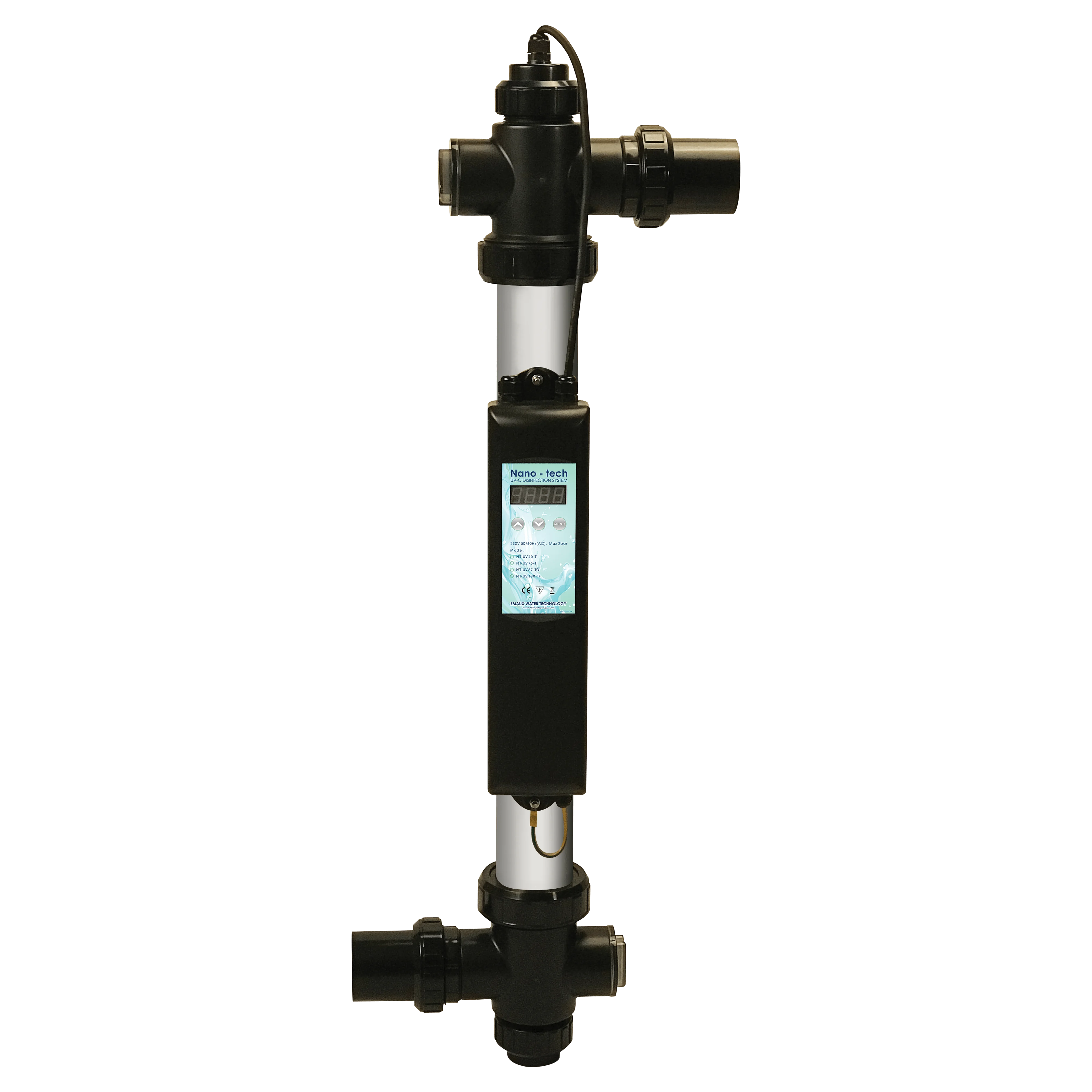

NanoTech UV-C Timer
Emaux Nano-Tech UV-C Timer includes an integrated timer which accurately monitors the operating hours of the UV-C lamp. You will be reminded when the lamp must be replaced.
Advantages of built-in timer:- User-friendly control pad with time clock digital display
- Built-in adjustable timer for the UV-C lamp
- Digital alert when the lamp needs replacing
| Code (230V) | Code (120V) | Model | Max Flow Rate ( m³/h ) | Pool Volume ( m³ ) | Input Power | Maximum Pressure | Connections | Electric Ballast | Maximum Current ( A ) | UV Lamp Lifetime ( hr ) |
|---|---|---|---|---|---|---|---|---|---|---|
| 9130403 | 9130411 | NT-UV40-T | 20 | 40 | 40W | 3 bar | 1.5" / 50mm or 2" / 63mm | 120-240V AC | 0.44 (120V) / 0.2 (240V) | 9,000 |
| 9130405 | 9130410 | NT-UV75-T | 25 | 75 | 75W | 3 bar | 1.5" / 50mm or 2" / 63mm | 120-240V AC | 0.82 (120V) / 0.38 (240V) | 9,000 |
Note: "T" stands for Timer

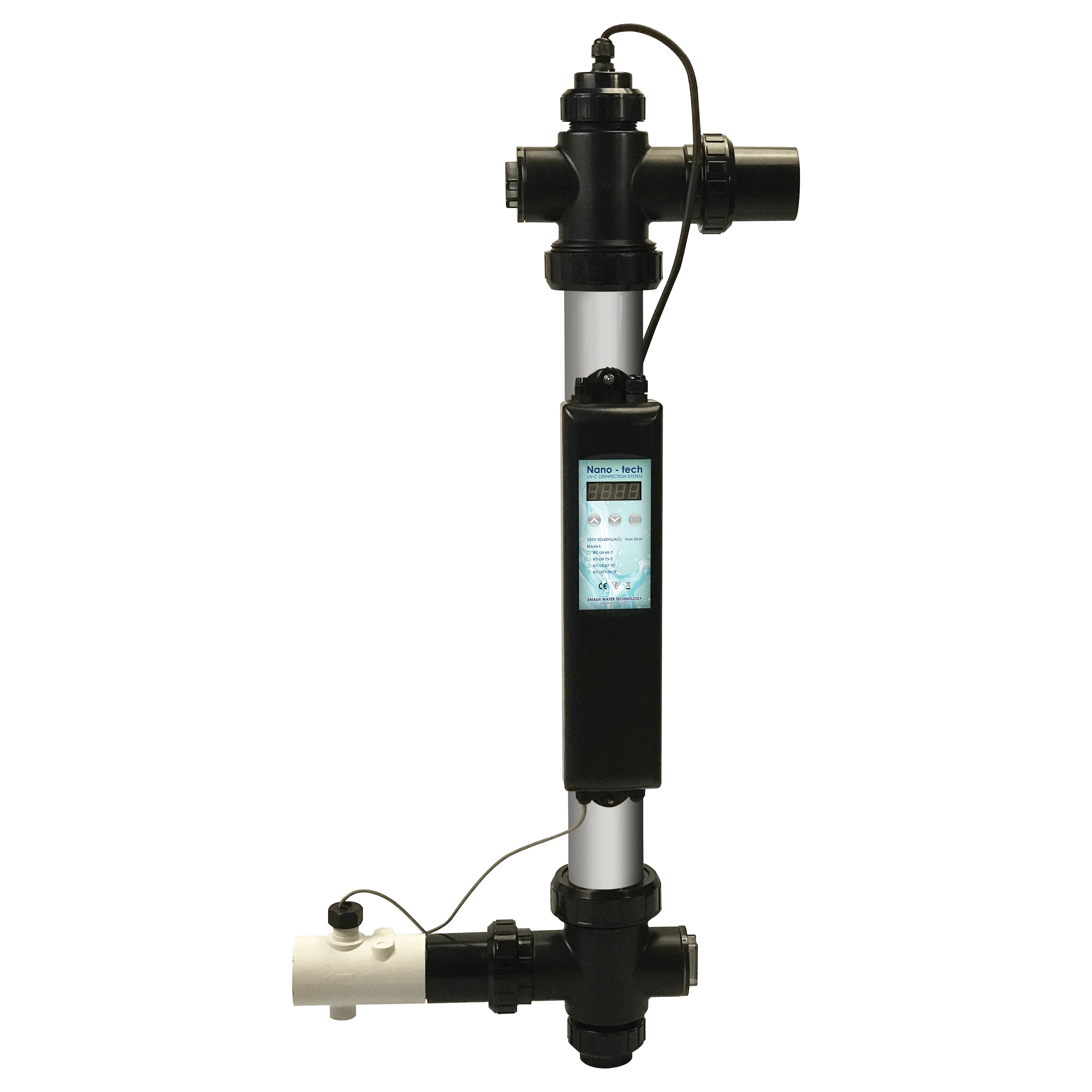

NanoTech UV-C with Amalgam Lamps and Flow Switch
Operating between low and medium pressure UV applications, NanoTech amalgam achieves a high relative power density operating in a broad temperature range. The amalgam version includes a flow switch which will cut-off the lamp power to protect the system from over-heating when the water flow is lower than required.
Due to a special coating technology, NanoTech guarantees a continued performance of 85% after 12,000 hours operating in a broad temperature range. A timer version is available as an option.
Main Applications:- Drinking water system
- Waste water system
- Process water treatment unit
- Swimming pool & spa
| Code (230V) | Code (120V) | Model | Max Flow Rate ( m³/h ) | Pool Volume ( m³ ) | Input Power | Maximum Pressure | Connections | Electric Ballast | Maximum Current ( A ) | UV Lamp Lifetime ( hr ) |
|---|---|---|---|---|---|---|---|---|---|---|
| 9130407 | - | NT-UV130F | 30 | 130 | 130W | 3 bar | 1.5" / 50mm or 2" / 63mm | 240V AC | 0.95 | 12,000 |
| 9130408 | - | NT-UV130TF | 30 | 130 | 130W | 3 bar | 1.5" / 50mm or 2" / 63mm | 240V AC | 0.95 | 12,000 |
Note: "F" stands for Flow switch, "T" stands for Timer

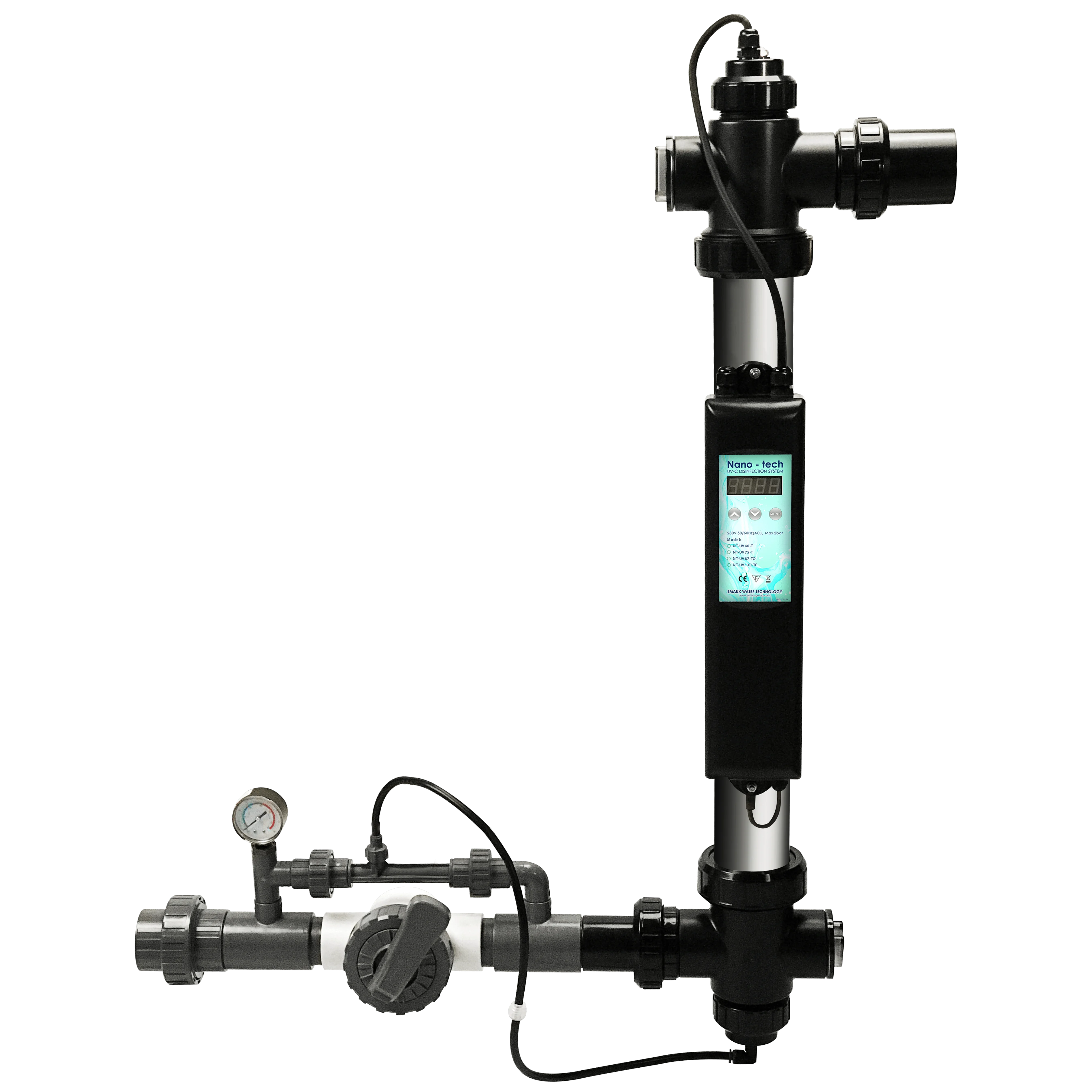

NanoTech UV-C Ozone
Emaux NanoTech UV-C Ozone combines UV-C technology with ozone production ensuring fresh and healthy pool water with the minimum use of chlorine.
The water is pumped into the unit through the reactor. Air is drawn through the venturi system into the unit via the air injector and flows through the quartz glass and the ozone UV-C lamp. The air enters the lamp and is charged with ozone molecules, then passes through the ball valve to be mixed with the water in the reactor.
Advantages:- Built-in electronic pre-selector ensures a smooth power supply
- Up to 35% more UV-C yield as a result of reflection
- Reduces use of chlorine by up to 80%
- Ozone UV-C lamp life 12,000 hours
- Built-in timer for the UV-C lamp
- Digital alert when the lamp needs replacing
| Code (230V) | Code (120V) | Model | Max Flow Rate ( m³/h ) | Pool Volume ( m³ ) | Input Power | Maximum Pressure | Connections | Electric Ballast | Maximum Current ( A ) | UV Lamp Lifetime ( hr ) |
|---|---|---|---|---|---|---|---|---|---|---|
| 9130406 | - | NT-UV87-TO | 25 | 90 | 87W | 3 bar | 1.5" / 50mm or 2" / 63mm | 240V AC; 50-60Hz | 0.5 | 12,000 |
Note: "O" stands for Ozone, "T" stands for Timer
Product Dimensions
( mm )

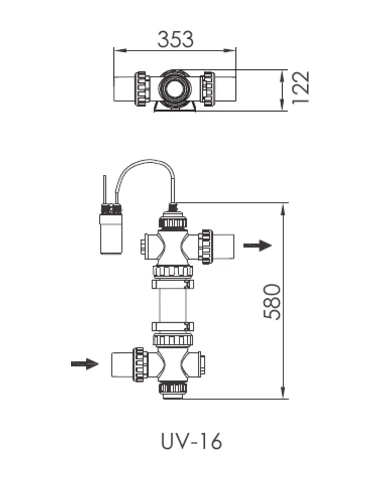

UV-16

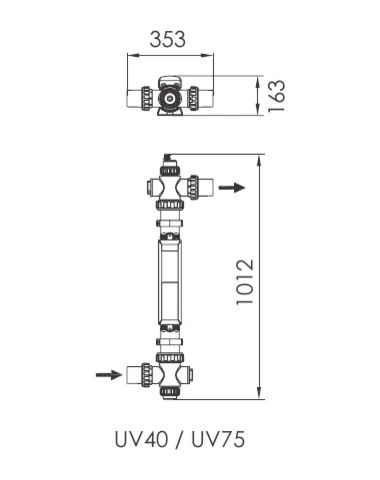

UV40 / UV75

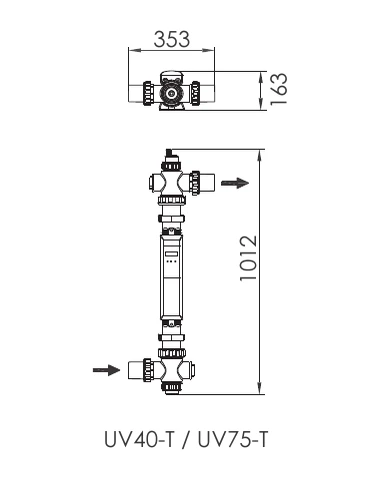

UV40-T / UV75-T

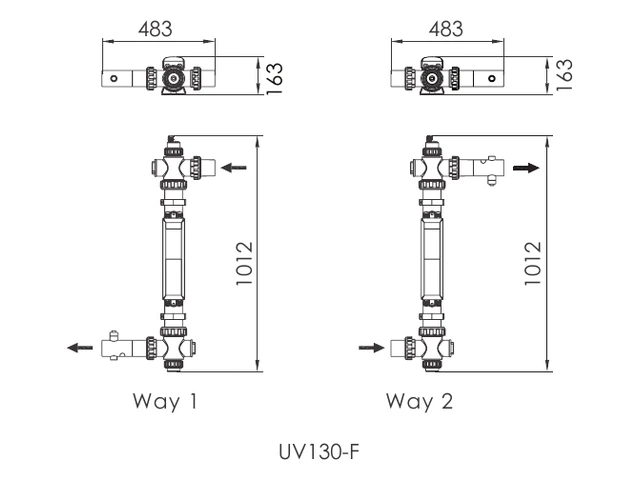

UV130-F

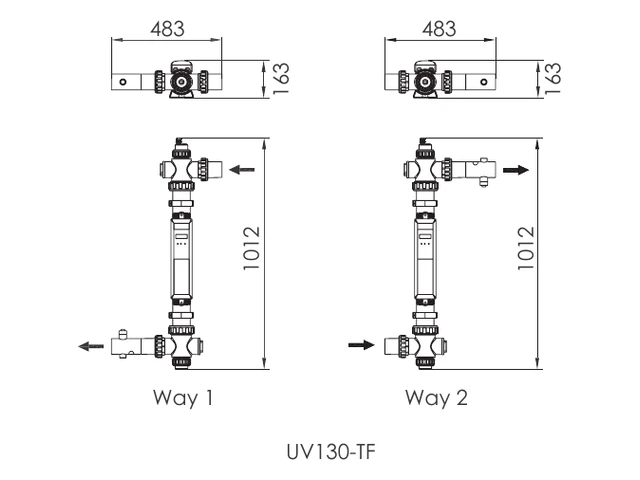

UV130-TF

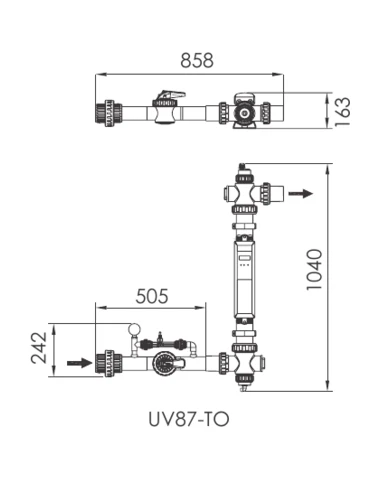

UV87-TO
