Aqua-Mini Pump
( For Above-ground Pools, optional built-in timer )
Aqua-Mini pump is specially designed for the above-ground swimming pool. Attached with a pre-filter and a transparent lid for easy installation and maintenance. A Timer is also available for users who prefer minimal monitoring. Once the users have set a start time and duration period, the pump will start and operate accordingly every day.
Product Features
Asynchronous, Two Poles Motor
Motor Insulation Class B
Built-in Thermal Protection
IPX5 Waterproof
External Heat Sink
Optional Timer
Union Connectors and flexible hose adaptors
Low Noise
Low Energy
Easy Maintenance

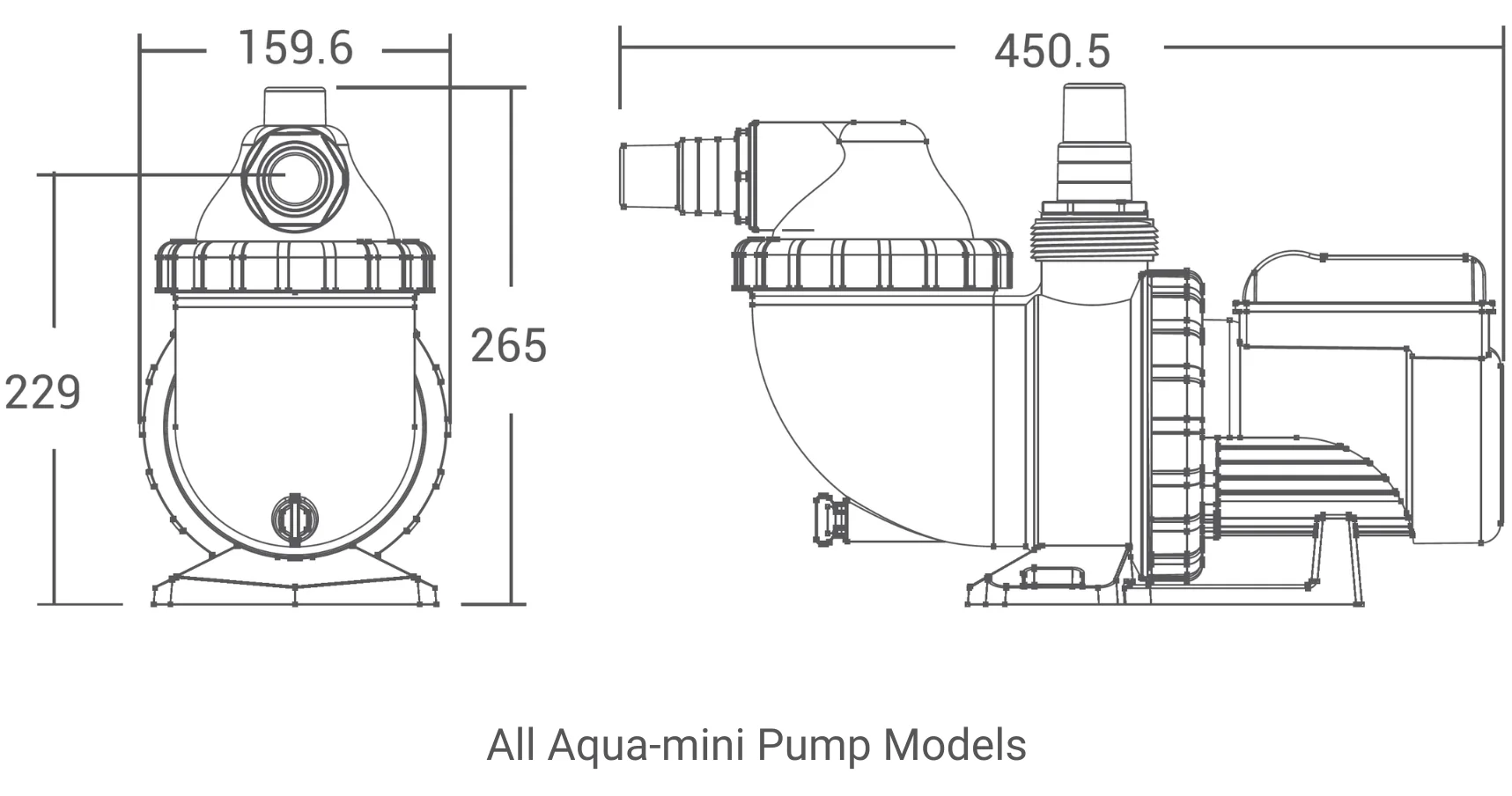

Product Dimensions
( mm )
Technical Information
| Model | Input Power ( kW ) | Current ( AMP ) | Noise ( dB ) | Flow Rate ( ㎥/h ) @ | |||
|---|---|---|---|---|---|---|---|
| 2m | 3m | 4m | 5m | ||||
| AMU020TP | 0.25 | 1.2 | 55 | 9.1 | 8.1 | 6.9 | 5.1 |
| AMU020P | 0.25 | 1.2 | 55 | 9.1 | 8.1 | 6.9 | 5.1 |
| Code (230V / 50Hz) | Code (110V / 60Hz) | Code (230V / 60Hz) | Model | Description | Connection Size | Horse Power ( hp ) | Adaptor | Weight ( kg ) |
|---|---|---|---|---|---|---|---|---|
| 88028401 | 88028501 | 88028301 | AMU020TP | 0.20HP Aqua-Mini Pump (with timer & pre-filter) | 1.5" / 50mm | 0.2 | 1 1/4" & 1 1/2" 32 & 38mm | 4.2 |
| 88027801 | 88027901 | 88027701 | AMU020P | 0.20HP Aqua-Mini Pump (with pre-filter) | 1.5" / 50mm | 0.2 | 1 1/4" & 1 1/2" 32 & 38mm | 4.2 |
