E-Power Pump
( For Residential & Semi-Commercial Pools )
A High-Performing Self-Priming Pump. Available in 50Hz or 60Hz with 230V/400V. Has a ring lock seal design to eliminate suction leaks and maximize suction efficiency.
Product Features
Asynchronous, Two Poles Motor
Motor Insulation Class B
Built-in Thermal Protection
IPX5 Waterproof
Overload Protection
Testing Pressure 50psi (3.5 bar)
5L Strainer Basket
316 Stainless Steel Shaft
316 Stainless Steel Mechanical Seal

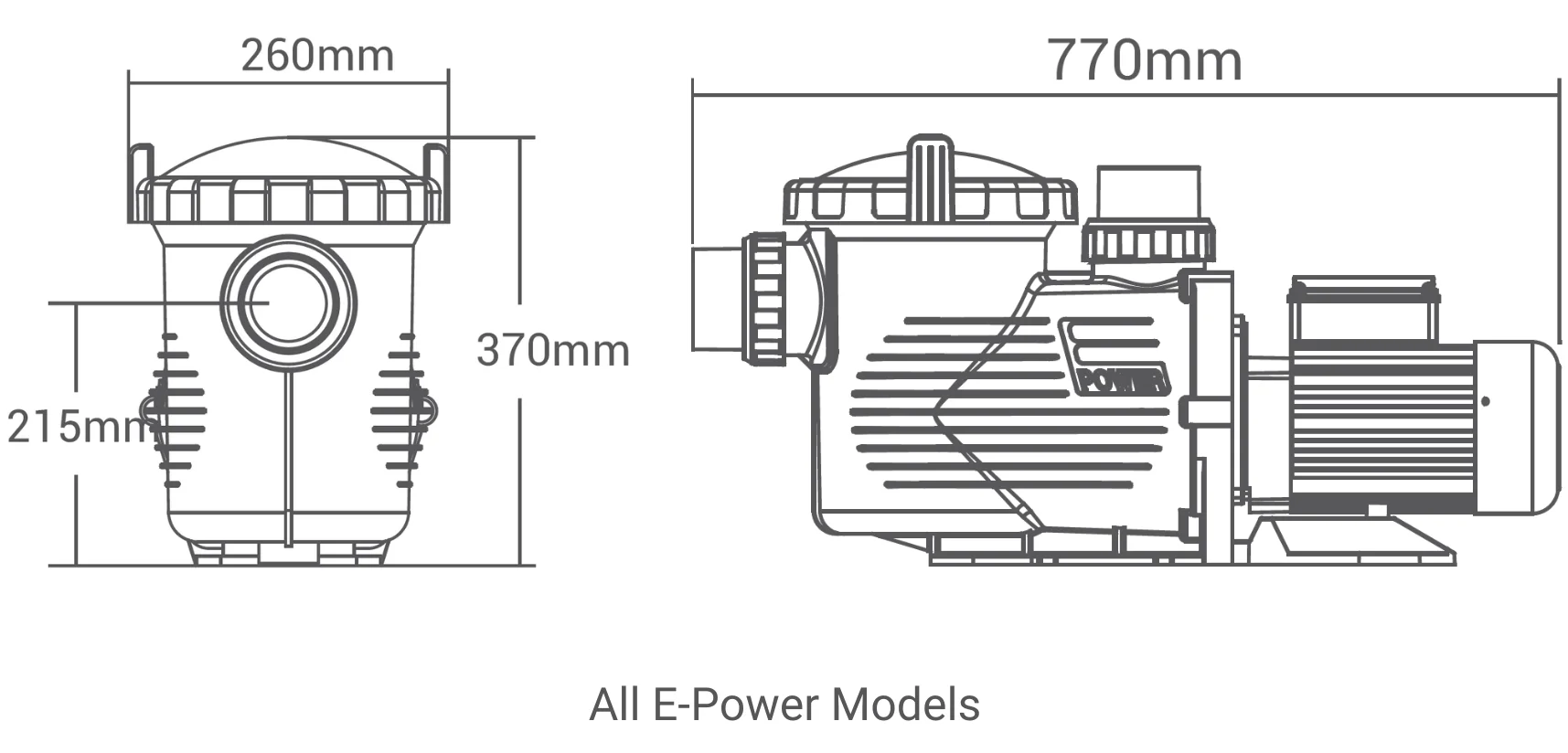

Product Dimensions
( mm )
Technical Information
| Model | Input Power ( kW ) | Current ( AMP ) | Noise ( dB ) | Flow Rate ( ㎥/h ) @ | |||||
|---|---|---|---|---|---|---|---|---|---|
| 6m | 8m | 10m | 12m | 14m | 16m | ||||
| EPH200 | 1.8 | 8.2 | 68 | 32 | 30 | 27 | 24 | 21 | 17 |
| EPH300 | 2.2 | 10 | 69 | 37 | 35 | 32 | 29 | 26 | 22 |
| EPH400 | 2.8 | 12.5 | 71 | 45 | 42 | 39 | 36 | 32 | 28 |
| Code (230V / 50Hz) | Code (230V / 60Hz) | Code (400V / 50Hz) | Model | Connection Size | Horse Power ( hp ) | Weight ( kg ) |
|---|---|---|---|---|---|---|
| 88020708 | 88021008 | 88020808 | EPH200 | 2.0" / 63mm 2.5" / 75mm | 2 | 23 |
| 88020709 | 88021009 | 88020809 | EPH300 | 2.0" / 63mm 2.5" / 75mm | 3 | 24 |
| 88020718 | 88021018 | 88020818 | EPH400 | 2.0" / 63mm 2.5" / 75mm | 4 | 25 |
