E-Power Variable Speed Pump
( For Large Residential Pools & Water Features )
Compared to the Emaux EPV range, traditional single speed pumps run continuously and inefficiently at maximum load incurring high running costs. Reduced speed provides slower water circulation rates and puts less strain on the complete installation such as filter, sanitization and plumbing. It reduces the wear-and-tear factor ending in significant savings for the pool owner.

Product Features

Permanent Magnet Motor (PMM)

Totally Enclosed Fan Cooled (TEFC)

5L Strainer Basket

316 Stainless Steel Shaft

316 Stainless Steel Mechanical Seal

IPX5 Waterproof
Product Highlights
Pump Advantages
Emaux E-Power Variable Speed Pump reduces the energy use of your pool, spa, and water features. Thanks to its higher efficiency, it eliminates over-usage and reduces equipment maintenance costs. The energy saving is achieved by programming the pump to reach the ideal flow rate schedule. As the pump speed is reduced, the water flow drops. A 50% reduction in speed cuts the flow rate by half, but at the same time reduces the power consumption by up to 85%.
Emaux E-Power Variable Speed Pump maximizes the efficiency of your pool filtration system with the aid of a one-touch controller. The presettable direct speed controller enables pool owners to manage their usage with the press of a single button to schedule their water treatment system with piece of mind.
With the advanced hydraulic design, water moves much more efficiently, and the operation is whisper quiet with the E-Power Variable Speed Pump operating at lower speeds. Permanent Magnet Motor technology eliminates excessive motor noise. E-Power Variable Speed Pump satisfies the most discerning user.
- Wi-Fi AP mode or Home Network STA Mode
- RS485 communication port

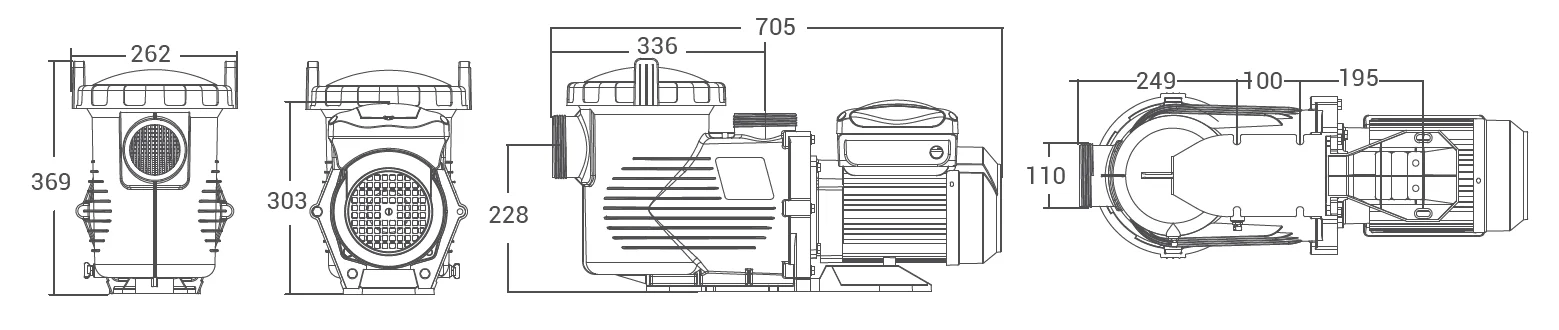

Product Dimensions
( mm )

Technical Information
| Code ( 220V-240V 50Hz-60Hz ) | Model | Connection Size | Max Input Power ( kW ) | Horse Power ( hp ) | Weight ( kg ) |
|---|---|---|---|---|---|
| 9021605 | EPV150-RS485 | 2.0" / 63mm 2.5" / 75mm | 1.5 | 1.5 | 23 |
| 9021606 | EPV200-RS485 | 2.0" / 63mm 2.5" / 75mm | 1.8 | 2 | 24 |
| 9021607 | EPV300-RS485 | 2.0" / 63mm 2.5" / 75mm | 2.2 | 3 | 25 |
| 9021611 | EPV150-WIFI+RS485 | 2.0" / 63mm 2.5" / 75mm | 1.5 | 1.5 | 23 |
| 9021612 | EPV200-WIFI+RS485 | 2.0" / 63mm 2.5" / 75mm | 1.8 | 2 | 24 |
| 9021613 | EPV300-WIFI+RS485 | 2.0" / 63mm 2.5" / 75mm | 2.2 | 3 | 25 |
