HB Air Blower
( For Commercial Spas )
HB Series Commercial Air Blower performs high-pressure air delivery and vacuum function. It is suitable for the spa usage with Emaux spa jets and fittings. Compact blowers for air or gas, pressure or vacuum with motors from 1 to 2 Hp (0.75 to 1.5 kW).
Product Features
Continuous duty rating with quality motors
Blowers are CE certified and can be customized for any application
High-temperature designs for up to 50°C
Assorted coatings and platings for corrosive environments
Available for 50Hz and 60Hz

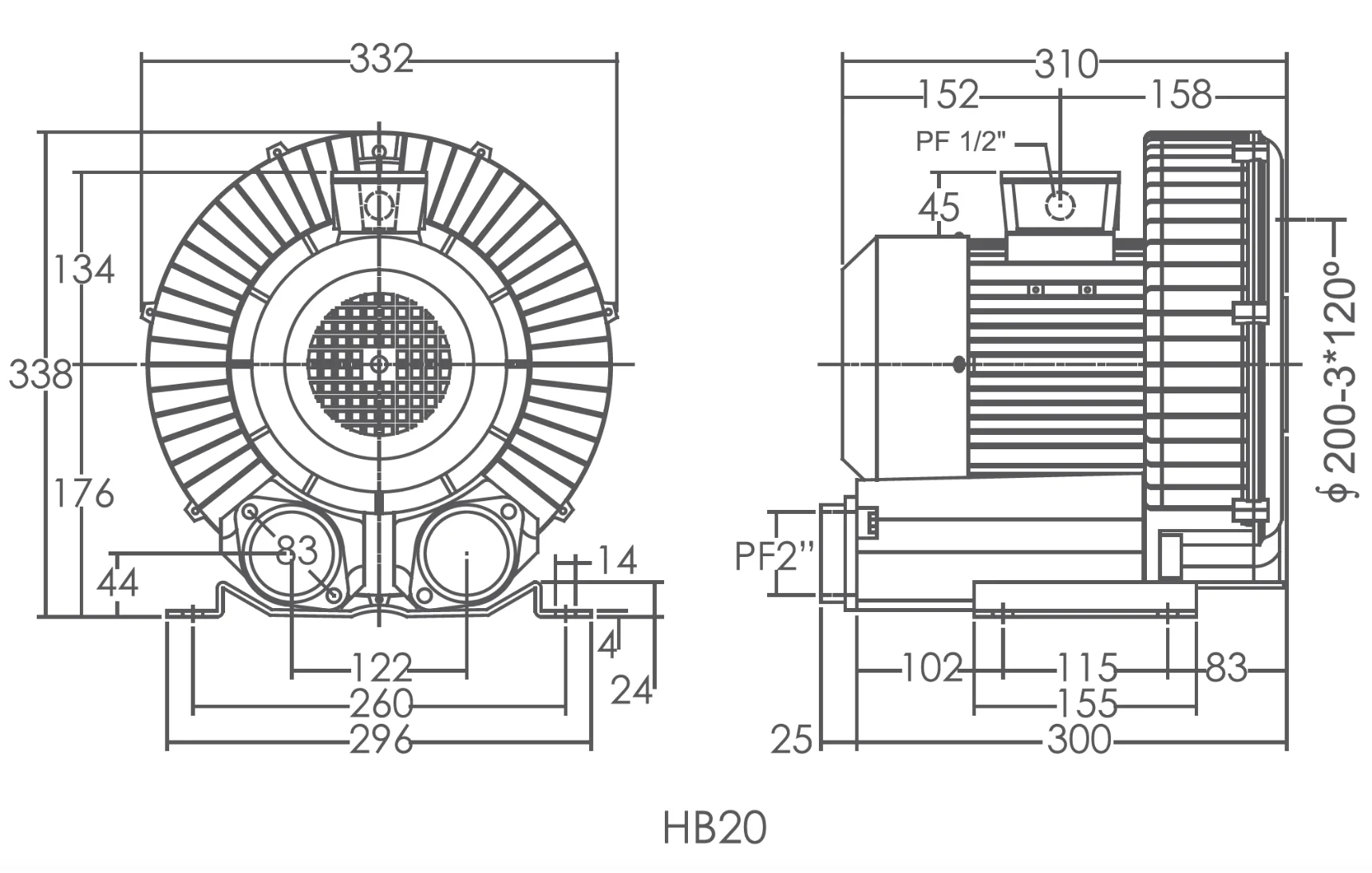

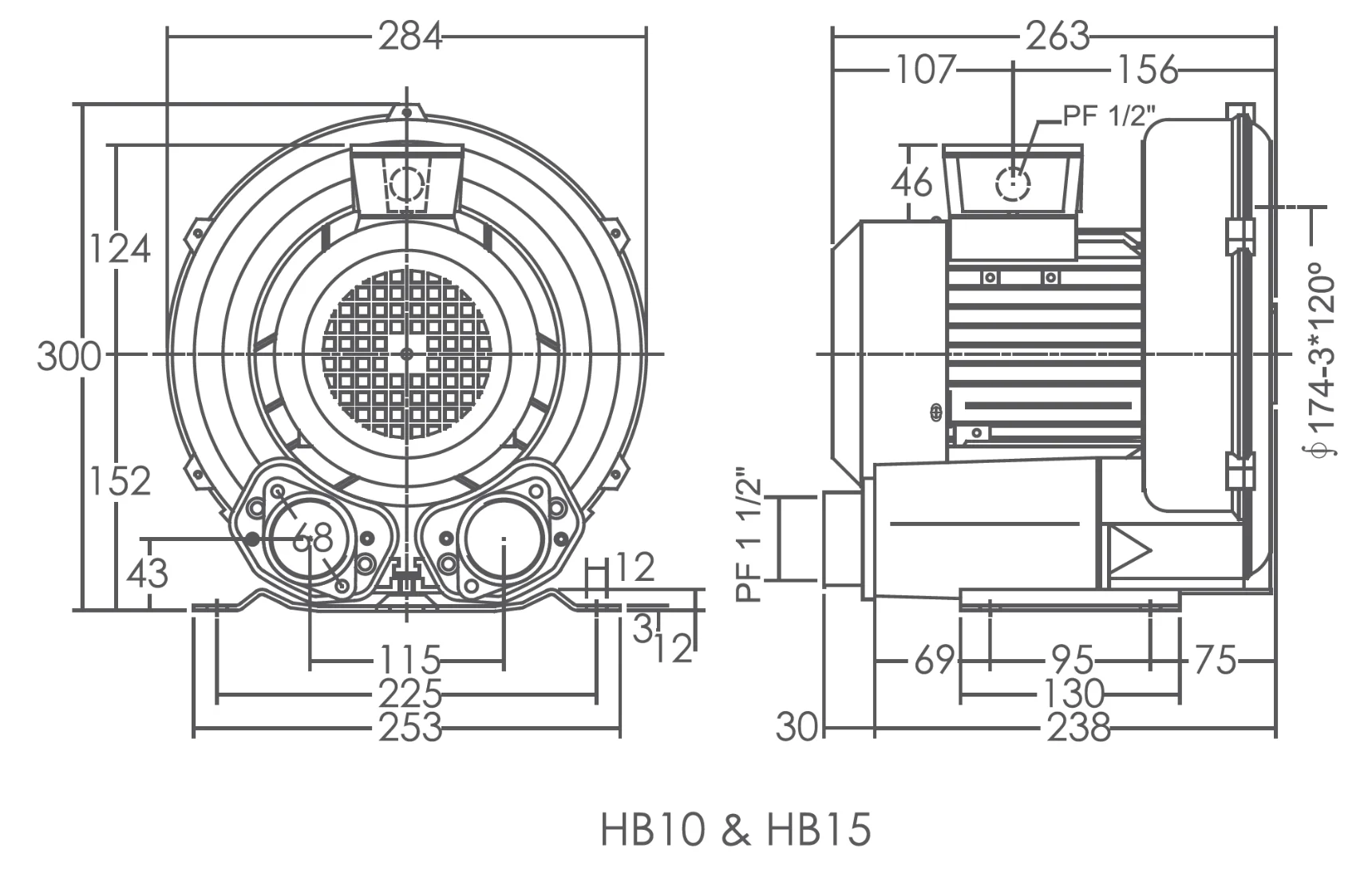

Product Dimensions
( mm )
Technical Information
| Code (220V / 50Hz) | Model | Output Power ( W ) | Current ( AMP ) | Noise ( dB ) | Static Pressure ( mbar ) | Horse Power ( hp ) | Max Volume ( ㎥/min) | Weight ( kg ) |
|---|---|---|---|---|---|---|---|---|
| 88080304 | HB10 | 750 | 5.5 | 63 | 140 - 160 | 1 | 2.4 | 16.5 |
| 88080305 | HB15 | 1100 | 7 | 63 | 160 - 190 | 1.5 | 2.4 | 16.5 |
| 88080306 | HB20 | 1500 | 10 | 70 | 180 - 190 | 2 | 3.6 | 26 |
