SB & SR Pumps
( For Residential Pools & Spas )
Proven long-term durability. High flow rate and high efficiency self-priming pumps with a ring-lock lid design. Available in 50Hz or 60Hz for 220V/380V, with special unions compatible with both Imperial and Metric standards.
* Only the SB Series is C-Tick and SASO certified
Product Features
2" Suction and Discharge Ports
Ring-Lock Lid Eliminates Leaks
Asynchronous, Two Poles Motor
Motor Insulation Class B
IPX5 Waterproof
Built-in Thermal Protection
Overload Protection
Available in 50Hz or 60Hz
Testing Pressure 50psi (3.5 bar)
316 Stainless Steel Shaft
316 Stainless Steel Mechanical Seal
Product Dimensions
( mm )

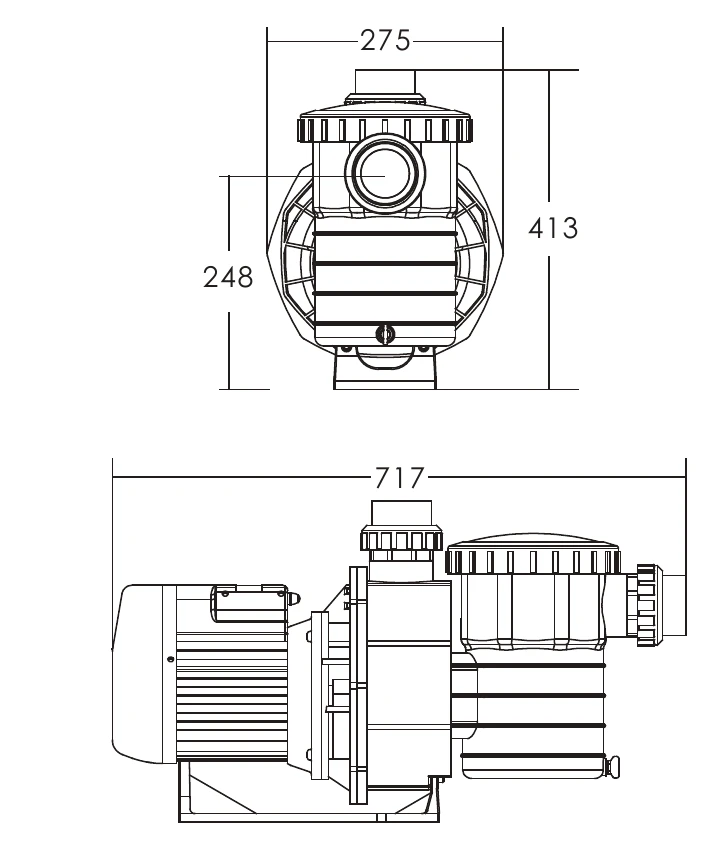

SB Series

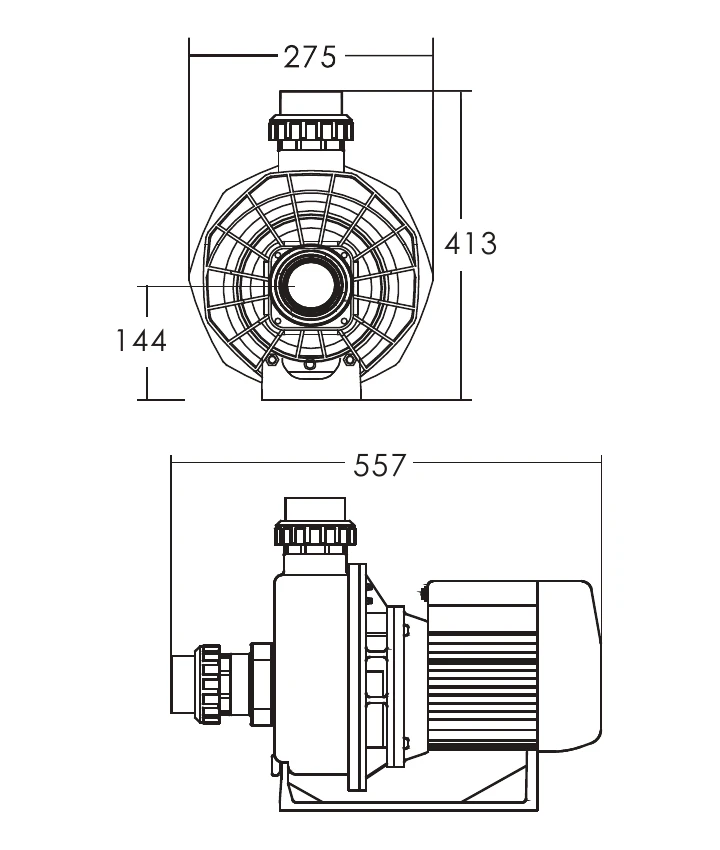

SR Series
SB Series - Technical Information
| Model | Input Power ( kW ) | Current ( AMP ) | Noise ( dB ) | Flow Rate ( ㎥/h ) @ | |||||
|---|---|---|---|---|---|---|---|---|---|
| 6m | 8m | 10m | 12m | 14m | 16m | ||||
| SB10 | 0.97 | 4.7 | 67 | 16.4 | 14 | 11 | 7 | -- | -- |
| SB15 | 1.3 | 5.9 | 67 | 24 | 22 | 19.5 | 16 | 12 | 2 |
| SB20 | 1.8 | 8.2 | 69 | 31 | 28 | 25.2 | 22 | 18 | 12 |
| SB30 | 2.18 | 10.5 | 69 | 34 | 32 | 28.4 | 26 | 23 | 19.2 |
| Code (220V / 50Hz) | Code (220V / 60Hz) | Code (380V / 50Hz) | Model | Connection Size | Horse Power ( hp ) | Capacitance 220V ( μF ) | Weight ( kg ) |
|---|---|---|---|---|---|---|---|
| 88021305 | 88021405 | 88021605 | SB10 | 2" / 63mm | 1 | 25 | 16 |
| 88021307 | 88021407 | 88021607 | SB15 | 2" / 63mm | 1.5 | 25 | 17 |
| 88021308 | 88021408 | 88021608 | SB20 | 2" / 63mm | 2 | 30 | 23 |
| 88021309 | 88021409 | 88021609 | SB30 | 2" / 63mm | 3 | 35 | 24 |
SR Series - Technical Information
| Model | Input Power ( kW ) | Current ( AMP ) | Noise ( dB ) | Flow Rate ( ㎥/h ) @ | |||||
|---|---|---|---|---|---|---|---|---|---|
| 6m | 8m | 10m | 12m | 14m | 16m | ||||
| SR10 | 0.97 | 4.7 | 67 | 19.6 | 17 | 14 | 10 | 4 | -- |
| SR15 | 1.3 | 5.9 | 67 | 23.2 | 21 | 18.8 | 14.8 | 11.6 | 2 |
| SR20 | 1.8 | 8.2 | 69 | 31 | 29.2 | 27 | 24 | 20.5 | 16 |
| SR30 | 2.18 | 10.5 | 69 | 34 | 32 | 30.5 | 28 | 25 | 21 |
| Code (220V / 50Hz) | Code (220V / 60Hz) | Code (380V / 50Hz) | Model | Connection Size | Horse Power ( hp ) | Capacitance 220V ( μF ) | Weight ( kg ) |
|---|---|---|---|---|---|---|---|
| 88023605 | 88023705 | 88023905 | SR10 | 2" / 63mm | 1 | 25 | 14.7 |
| 88023607 | 88023707 | 88023907 | SR15 | 2" / 63mm | 1.5 | 25 | 16.3 |
| 88023608 | 88023708 | 88023908 | SR20 | 2" / 63mm | 2 | 30 | 19.7 |
| 88023609 | 88023709 | 88023909 | SR30 | 2" / 63mm | 3 | 35 | 22.1 |
