SC Pump
( For Medium Size Residential Pools )
The SC pump is a self priming pump up to 2m above water level. Available in 50Hz or 60Hz for 230V/115V. 1.5-inch suction and discharge port with a transparent lid.
Product Features
Asynchronous, Two Poles Motor
Motor Insulation Class B
Built-in Thermal Protection
IPX5 Waterproof
Overload Protection
External Heat Sink
316 Stainless Steel Shaft
316 Stainless Steel Mechanical Seal
2.5L Strainer Basket
Low Noise
Low Energy
Easy Maintenance

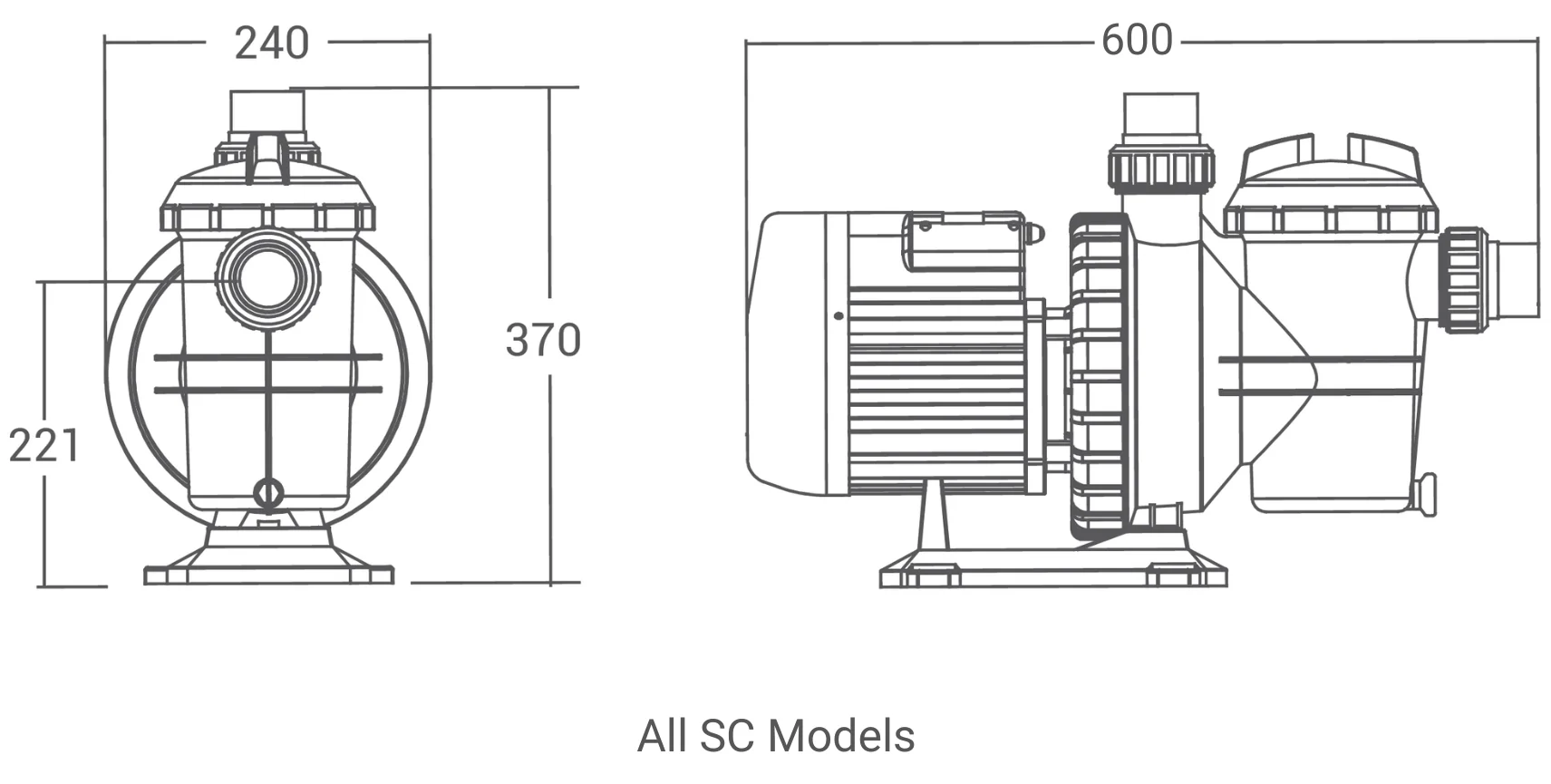

Product Dimensions
( mm )
Technical Information
| Model | Input Power ( kW ) | Current ( AMP ) | Noise ( dB ) | Flow Rate ( ㎥/h ) @ | |||
|---|---|---|---|---|---|---|---|
| 4m | 6m | 8m | 10m | ||||
| SC050 | 0.51 | 2.5 | 60 | 12 | 6.8 | - | - |
| SC075 | 0.75 | 3.5 | 68 | 16.4 | 13.8 | 9 | - |
| SC100 | 0.97 | 4.7 | 70 | 19 | 17 | 14 | 10 |
| SC150 | 1.3 | 5.9 | 70 | 22 | 20 | 17.2 | 14 |
| SC200 | 1.71 | 8.2 | 73 | 26 | 23.2 | 21 | 18 |
| Code (230V / 50Hz) | Code (230V / 60Hz) | Model | Connection Size | Horse Power ( hp ) | Capacitance 230V ( μF ) | Weight ( kg ) |
|---|---|---|---|---|---|---|
| 88021703 | 88021803 | SC050 | 1.5" / 50mm | 0.5 | 14 | 10.4 |
| 88021704 | 88021804 | SC075 | 1.5" / 50mm | 0.75 | 20 | 12.1 |
| 88021705 | 88021805 | SC100 | 1.5" / 50mm | 1 | 25 | 13.4 |
| 88021707 | 88021807 | SC150 | 1.5" / 50mm | 1.5 | 25 | 14.9 |
| 88021708 | 88021808 | SC200 | 1.5" / 50mm | 2 | 30 | 15.4 |
