SE Commercial Iron Pump
( For Fresh Water Comercial Pools )
SE Series Commercial Iron Pump build to cater commercial usage (e.g Large-size swimming pool, spa pool, water feature, etc). Cast iron body with easy to clean large strainer basket. Stainless Steel or Metal Impellers options are available to match your need, range from 5.5 hp to 15 hp, suitable for heavy-duty commercial usage (e.g. Large size swimming pool, commercial spa pools and water features). Renowned ABB motor is used to ensure quiet and stable operation.
Product Features
Asynchronous, Two Poles Motor
Motor Insulation Class B
IPX5 Waterproof
Testing Pressure 50psi (3.5 bar)
5L Strainer Basket

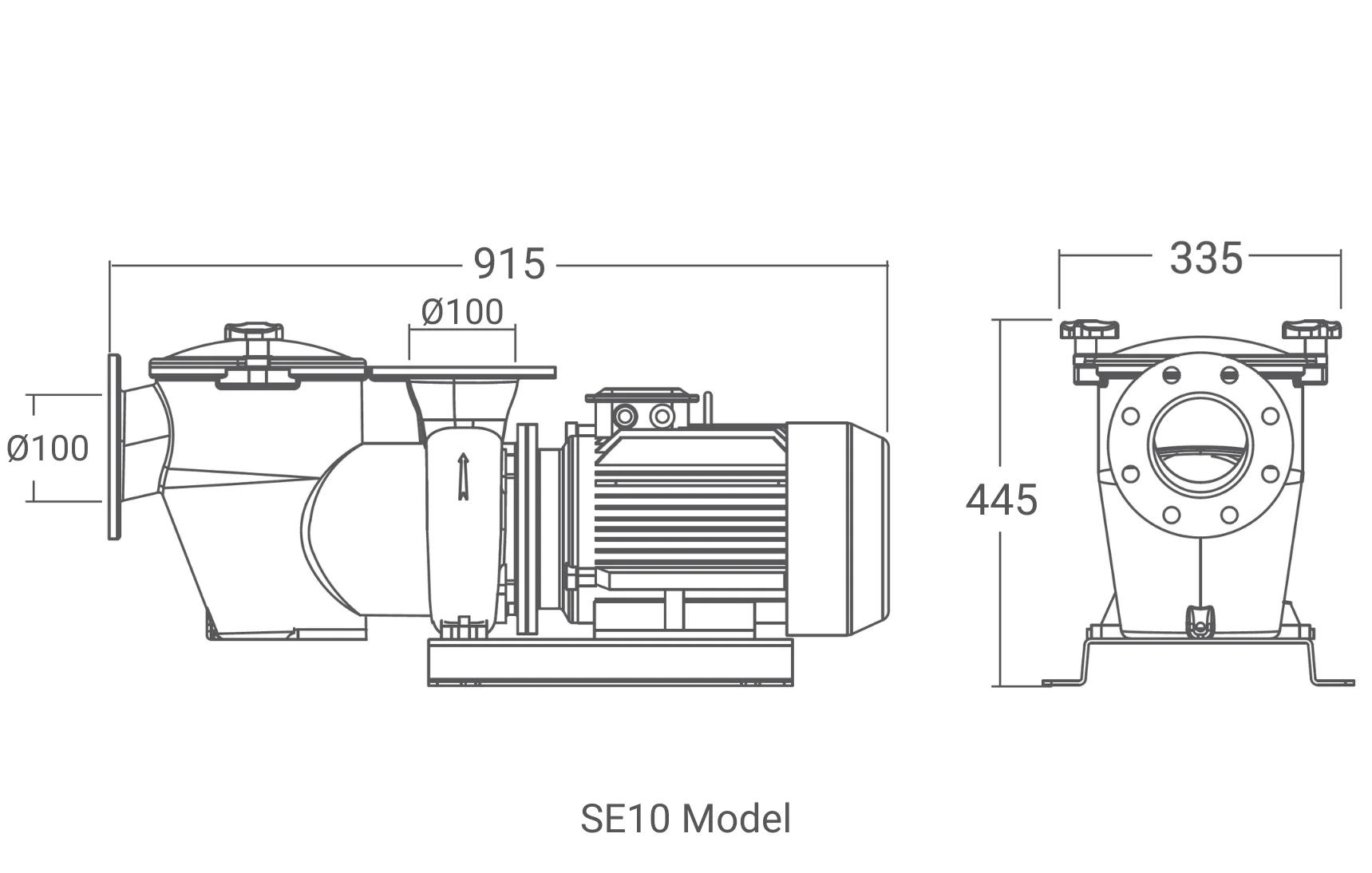

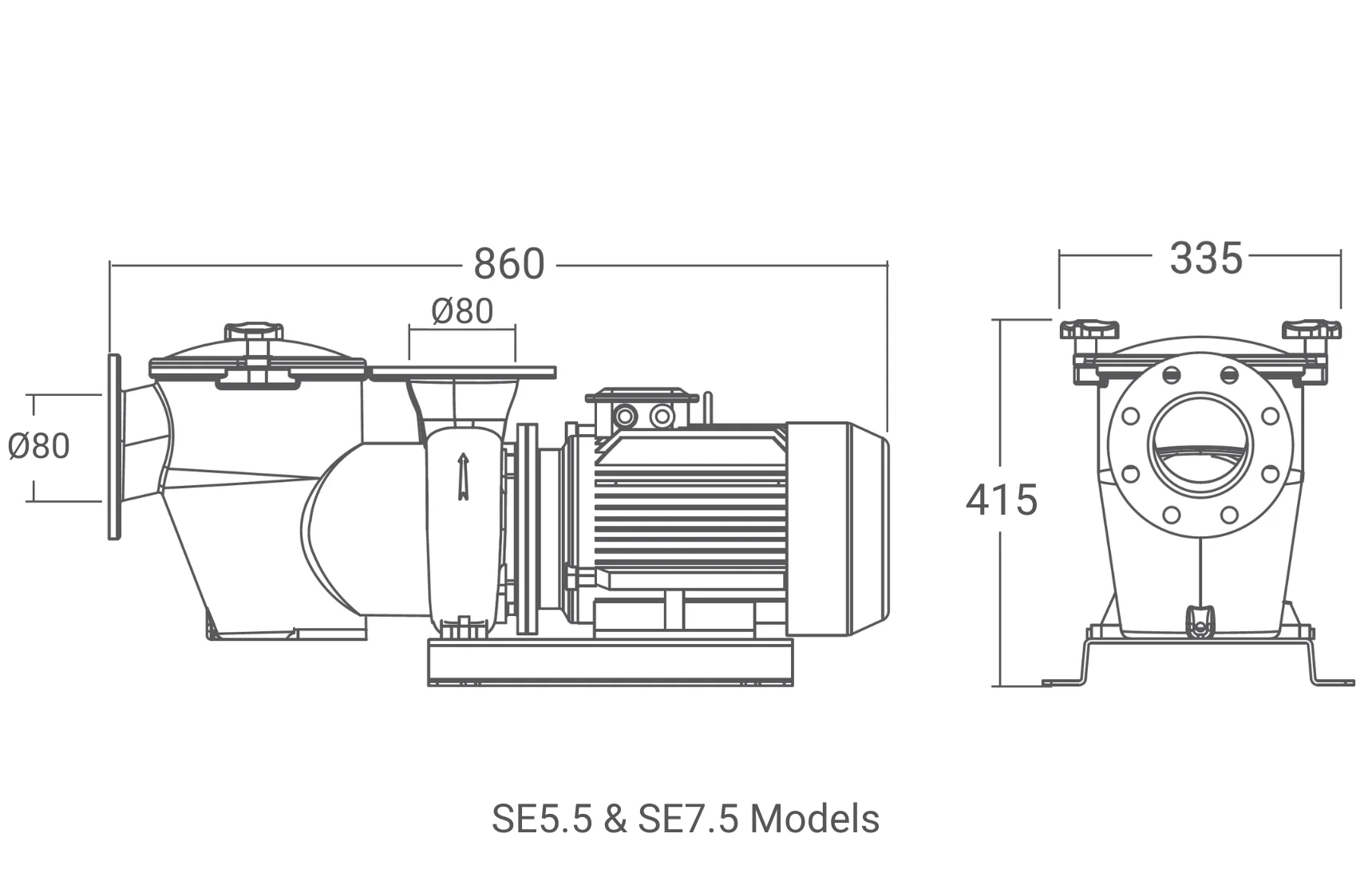

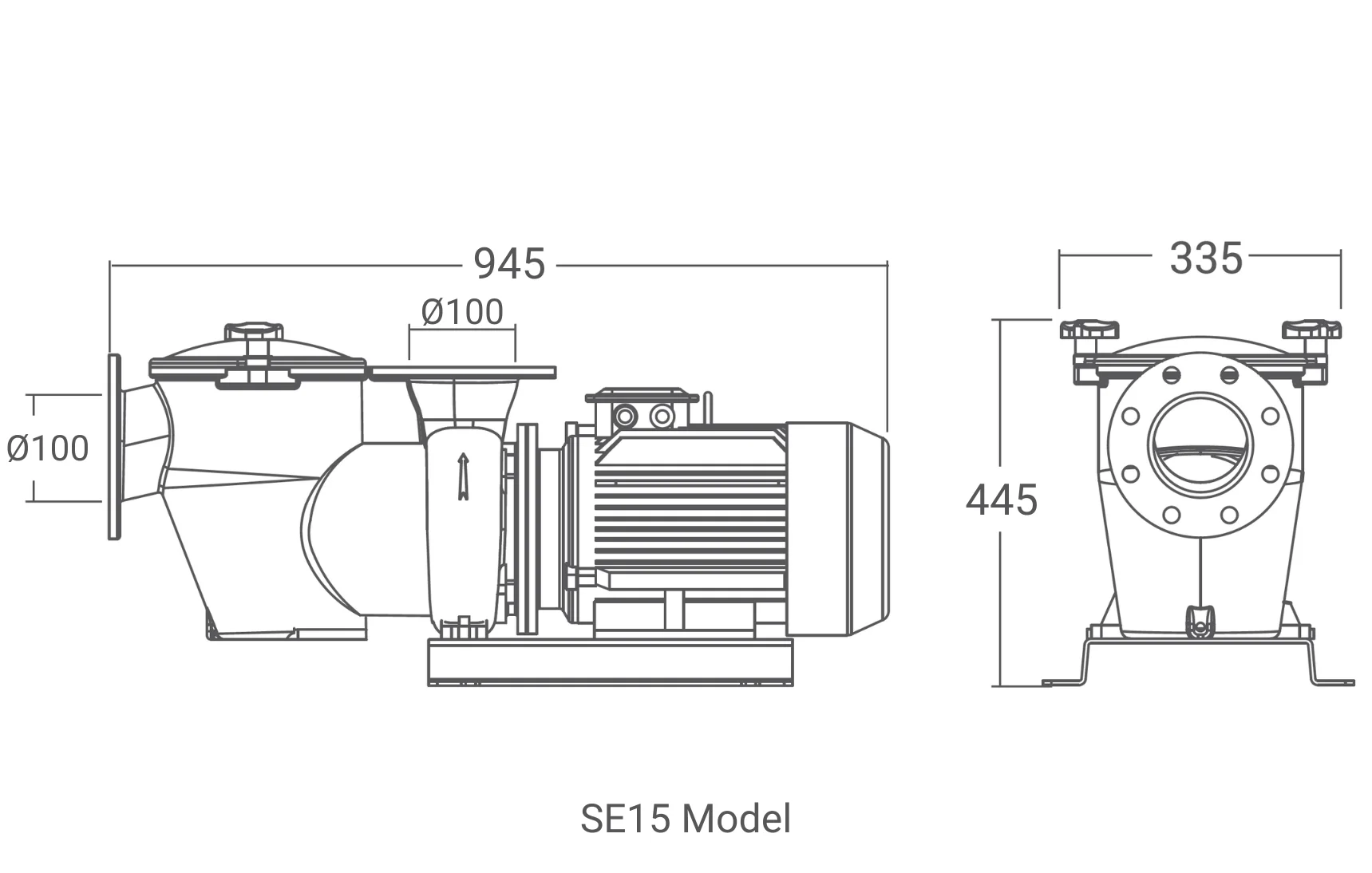

Product Dimensions
( mm )
Technical Information
| Model | Input Power ( kW ) | Current ( AMP ) | Noise ( dB ) | Flow Rate ( ㎥/h ) @ | |||||
|---|---|---|---|---|---|---|---|---|---|
| 8m | 10m | 12m | 14m | 16m | 18m | ||||
| SE5.5 | 4.7 | 7 | 72 | 83 | 75 | 70 | 60 | 45 | 25 |
| SE7.5 | 6.4 | 9 | 76 | 100 | 92 | 85 | 75 | 65 | 45 |
| SE10 | 8.6 | 14 | 75 | 135 | 130 | 120 | 112 | 95 | 80 |
| SE15 | 12.4 | 18 | 78 | 160 | 150 | 142 | 135 | 120 | 110 |
| Code (Cast Iron Impeller) (400V / 50Hz) | Code (SS304 Impeller) (400V / 50Hz) | Model | Connection Size | Horse Power ( hp ) | Output Power ( kW ) | Weight ( kg ) |
|---|---|---|---|---|---|---|
| 9021005 | 9021006 | SE5.5 | 3.0" / 90mm | 5.5 | 4 | 95 |
| 9021007 | 9021008 | SE7.5 | 3.0" / 90mm | 7.5 | 5.5 | 100 |
| 9021001 | 9021002 | SE10 | 4.0" / 110mm | 10 | 7.5 | 118 |
| 9021003 | 9021004 | SE15 | 4.0" / 110mm | 15 | 11 | 130 |
