Super-Power Pump
( For Residential Pool & Spas )
Known for its reputation for innovation and based on market feedback, Emaux has developed the SPH Series by answering a call from pool professionals for a reliable, economical pump for new installations and retrofits.
Product Features
Asynchronous, Two Poles Motor
Motor Insulation 155(F)
Built-in Thermal Protection
IPX5 Waterproof
Overload Protection
Testing Pressure 50psi (3.5 bar)
2L PP and Fibreglass Strainer Basket
316 Stainless Steel Shaft
316 Stainless Steel Mechanical Seal

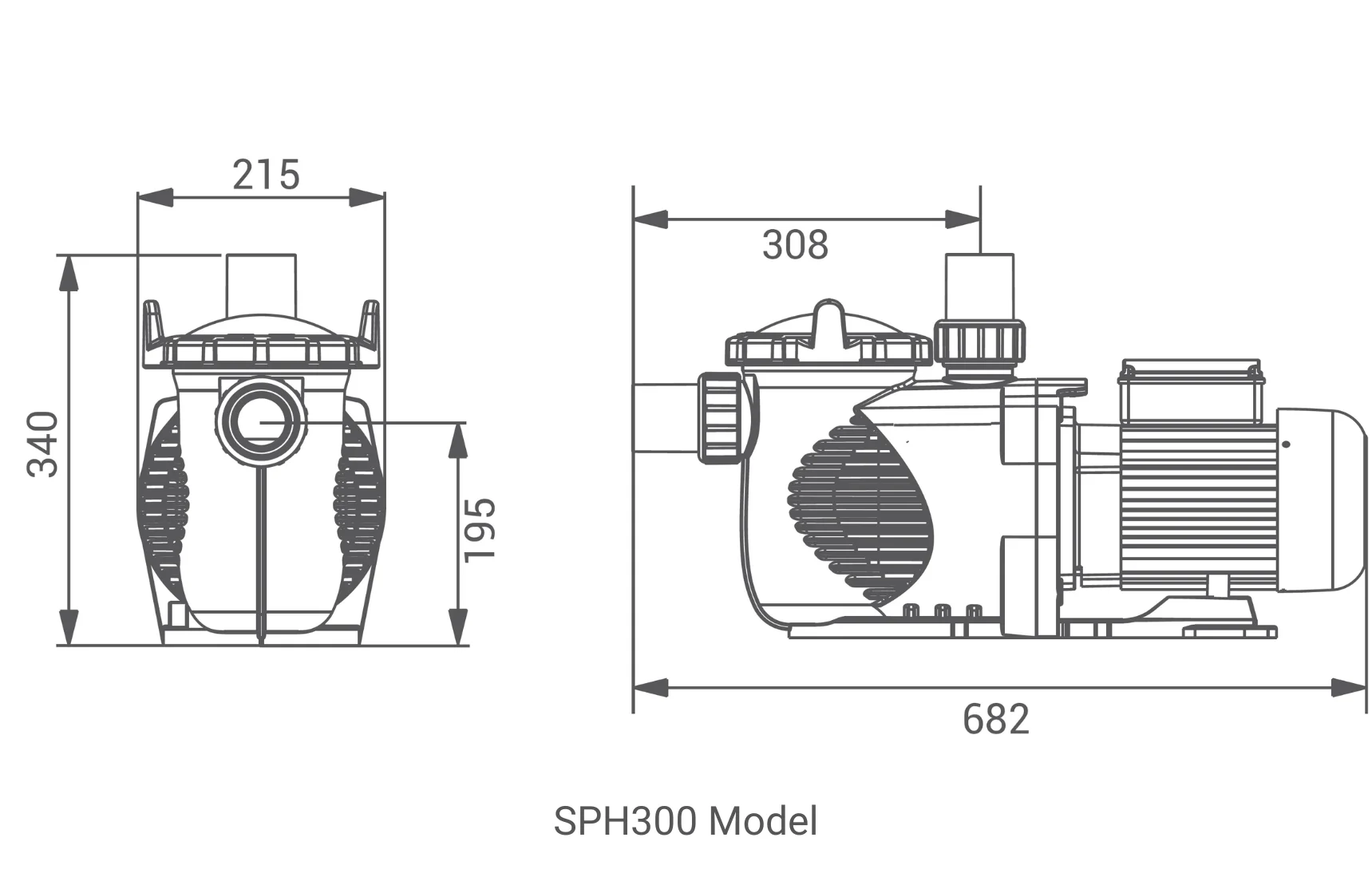

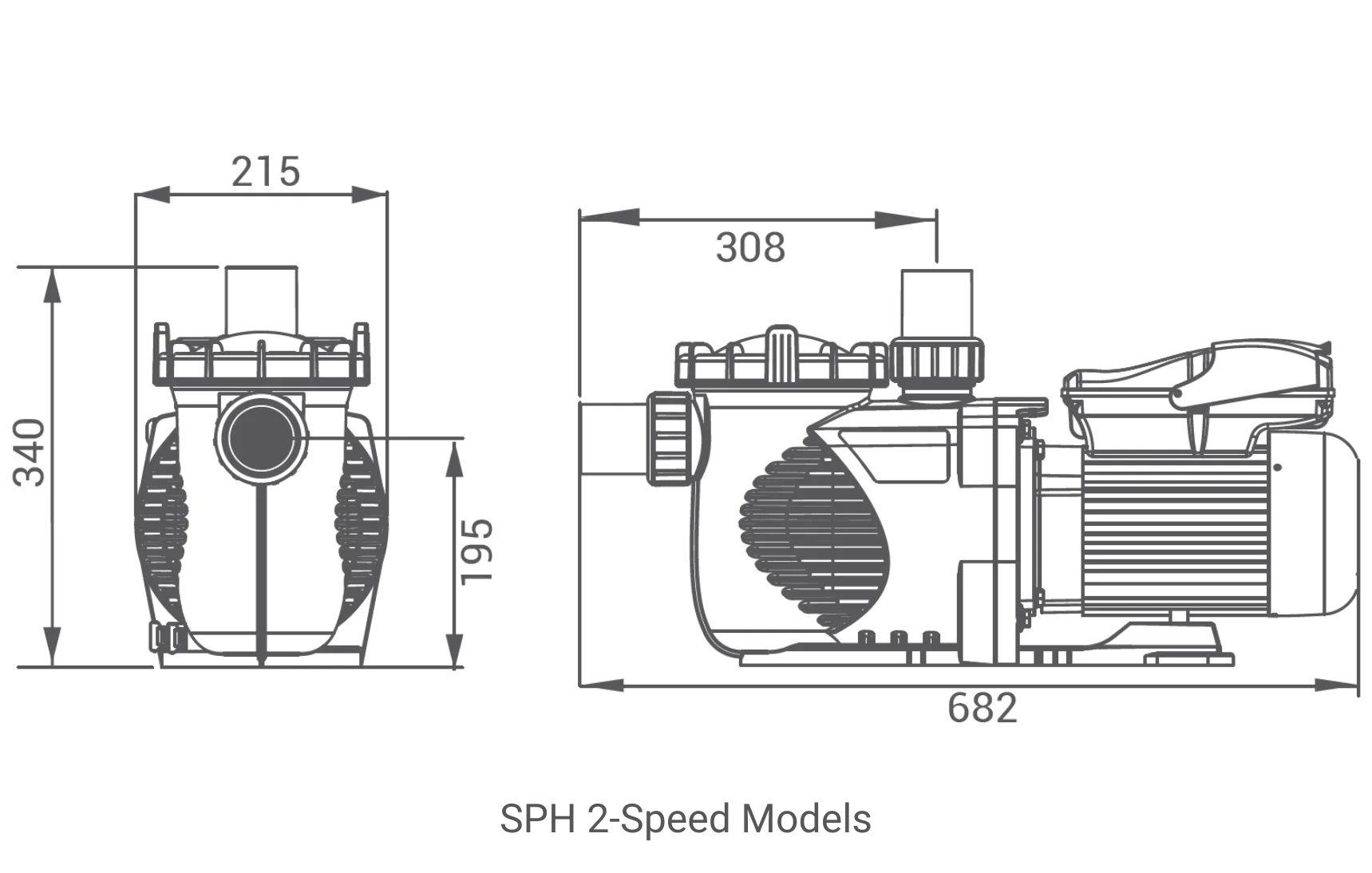

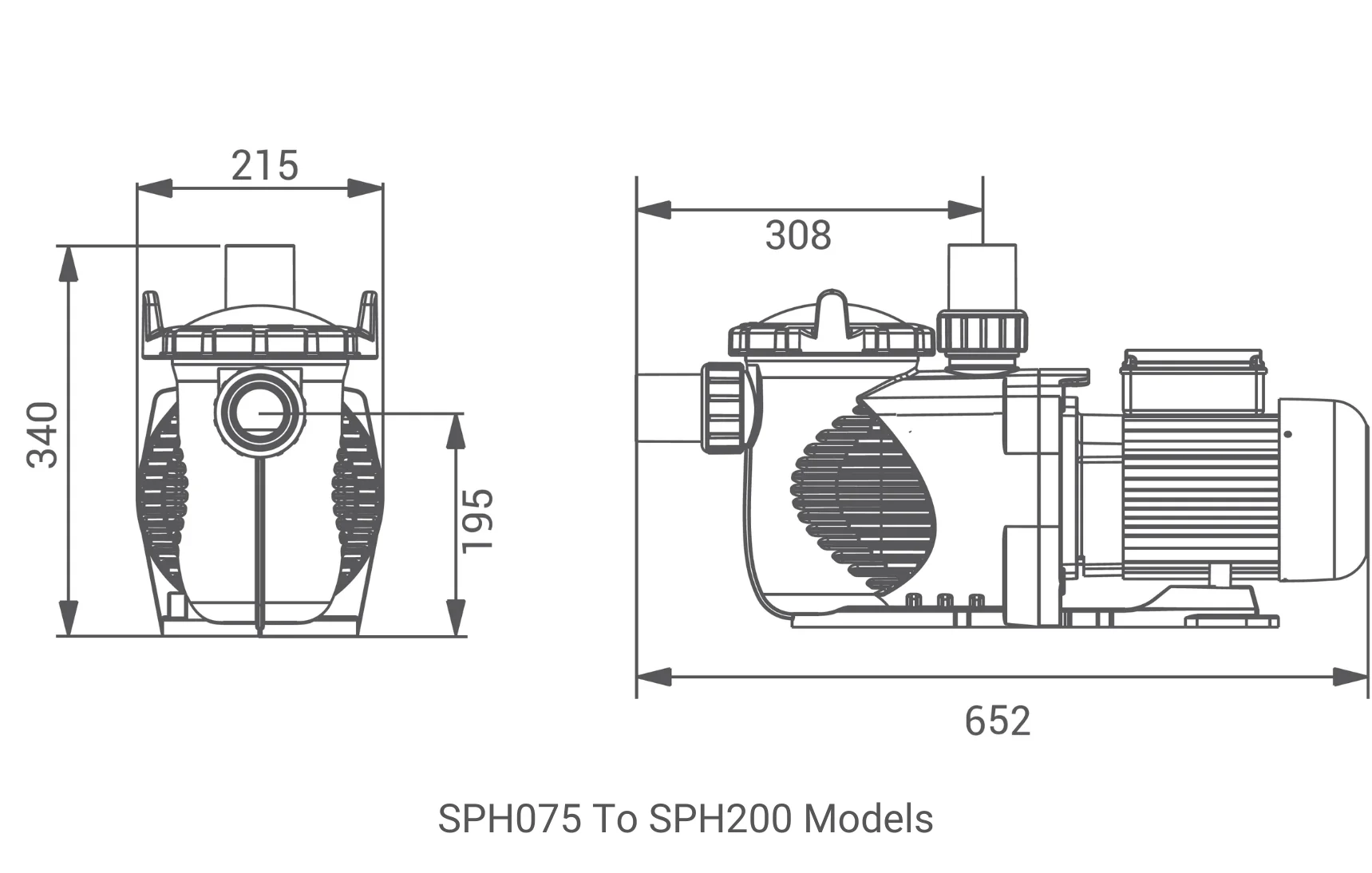

Product Dimensions
( mm )
Technical Information
| Model | Input Power ( kW ) | Current ( AMP ) | Noise ( dB ) | Flow Rate ( ㎥/h ) @ | |||||
|---|---|---|---|---|---|---|---|---|---|
| 6m | 8m | 10m | 12m | 14m | 16m | ||||
| SPH075 | 0.75 | 3.5 | 65 | 15 | 12.5 | 9.5 | 5 | - | - |
| SPH100 | 1.1 | 5 | 65 | 19.5 | 17.5 | 15.2 | 12.5 | 9 | 3 |
| SPH150 | 1.5 | 6.8 | 67 | 24 | 22 | 19.9 | 17.5 | 14 | 10 |
| SPH200 | 1.8 | 8.2 | 67 | 27.5 | 25.5 | 23 | 21.7 | 18 | 14.5 |
| SPH300 | 2.2 | 10 | 68 | 30 | 28.5 | 26 | 23.8 | 21 | 18 |
| SPH100-II (High Speed) | 1.1 | 5 | 65 | 19.5 | 17.5 | 15.2 | 12.5 | 9 | 3 |
| SPH100-II (Low Speed) | 0.3 | 1.3 | 52 | - | - | - | - | - | - |
| SPH150-II (High Speed) | 1.5 | 6.8 | 65 | 24 | 22 | 19.9 | 17.5 | 14 | 10 |
| SPH150-II (Low Speed) | 0.35 | 1.5 | 52 | - | - | - | - | - | - |
| Code (230V / 50Hz) | Code (230V / 60Hz) | Model | Connection Size | Horse Power ( hp ) | Weight ( kg ) | Capacitance ( μF ) |
|---|---|---|---|---|---|---|
| 88029604 | 88029704 | SPH075 | 1.5" / 50mm 2.0" / 63mm | 0.75 | 13.6 | 20 |
| 88029605 | 88029705 | SPH100 | 1.5" / 50mm 2.0" / 63mm | 1 | 13.8 | 25 |
| 88029607 | 88029707 | SPH150 | 1.5" / 50mm 2.0" / 63mm | 1.5 | 14 | 25 |
| 88029608 | 88029708 | SPH200 | 1.5" / 50mm 2.0" / 63mm | 2 | 14.2 | 30 |
| 88029609 | 88029709 | SPH300 | 1.5" / 50mm 2.0" / 63mm | 3 | 14.5 | 35 |
| 9023212 | 9023224 | SPH100-II | 1.5" / 50mm 2.0" / 63mm | 1 | 14.7 | 30 16 |
| 9023213 | 9023225 | SPH150-II | 1.5" / 50mm 2.0" / 63mm | 1.5 | 15 | 30 16 |
