Ultra-Power Commercial Pump
( For Commercial Pools, Spas, Aquatic Parks, and Seawater Facilities )

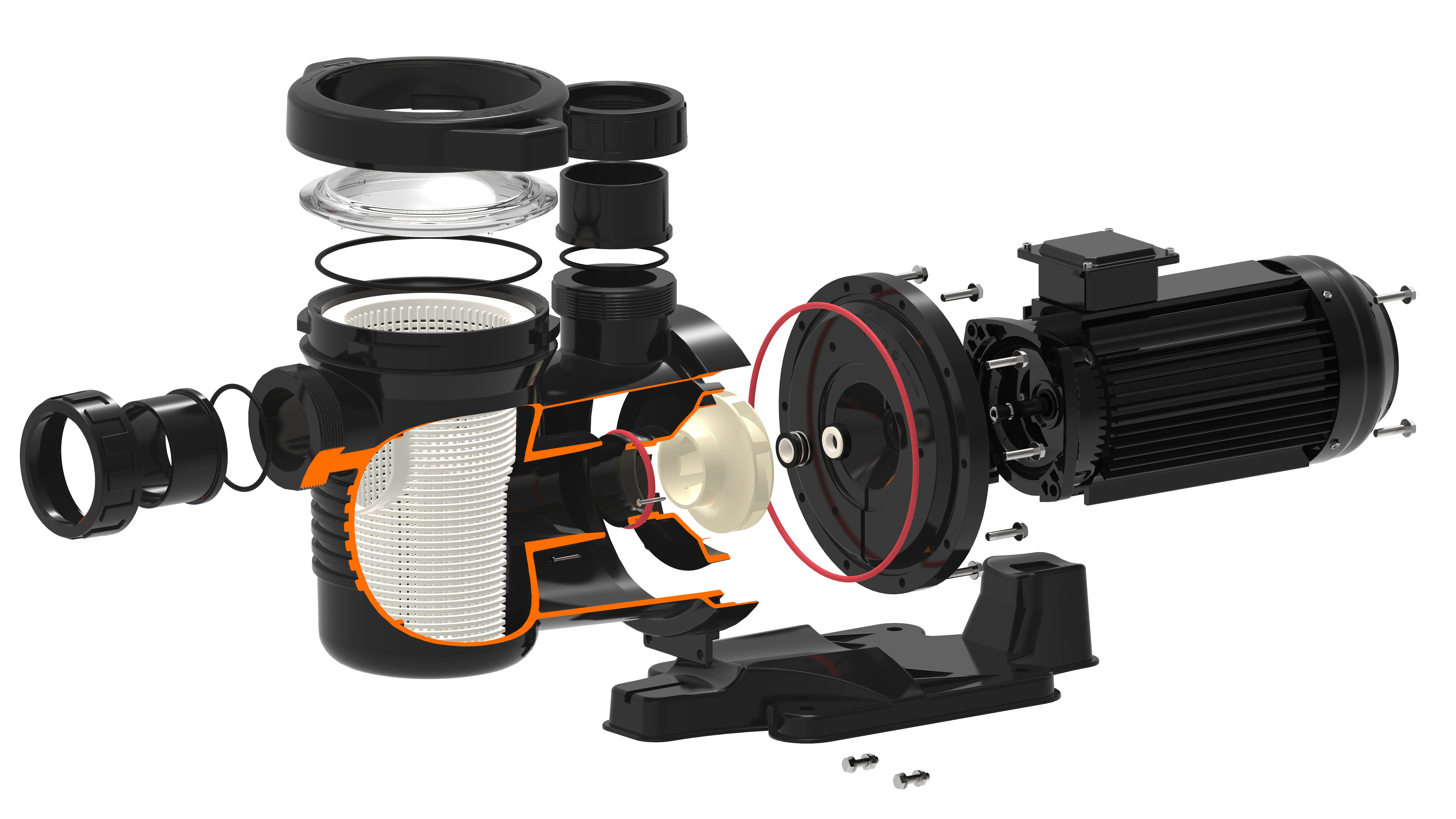

Ultra-Power is a series of high-performance pumps designed to achieve the highest flows among similar pumps on the market. By utilizing state-of-the-art engineering, the one-piece molded pump body with a large capacity 8-liter strainer basket makes it unique among all comparable pumps. Built with corrosion and chemical resistant glass-reinforced thermoplastic and superior seawater graded mechanical seal guarantee a long working life.
Product Features
Premium Efficiency IE3 Class Motor
Self-Priming Up to 3m above water level
IPX5 Waterproof
Working Voltage: 380-400V
8L Strainer Basket
Bearing: High Temperature Resistance Up To 160°C
Product Highlights
Outstanding Hydraulic Performance
( Highest Efficiency up to 80% )
The Ultra-Power pump is Emaux's first commercial pump with a 3" union to achieve the hydraulic performance of more than 45 m³/h at 18m of head (7hp model). With a wide selection of power options (from 4, 5.5, 7hp) available in 3-phase motor, it becomes one of the most efficient and energy-saving solution for various range of the commercial pool and seawater facilities.

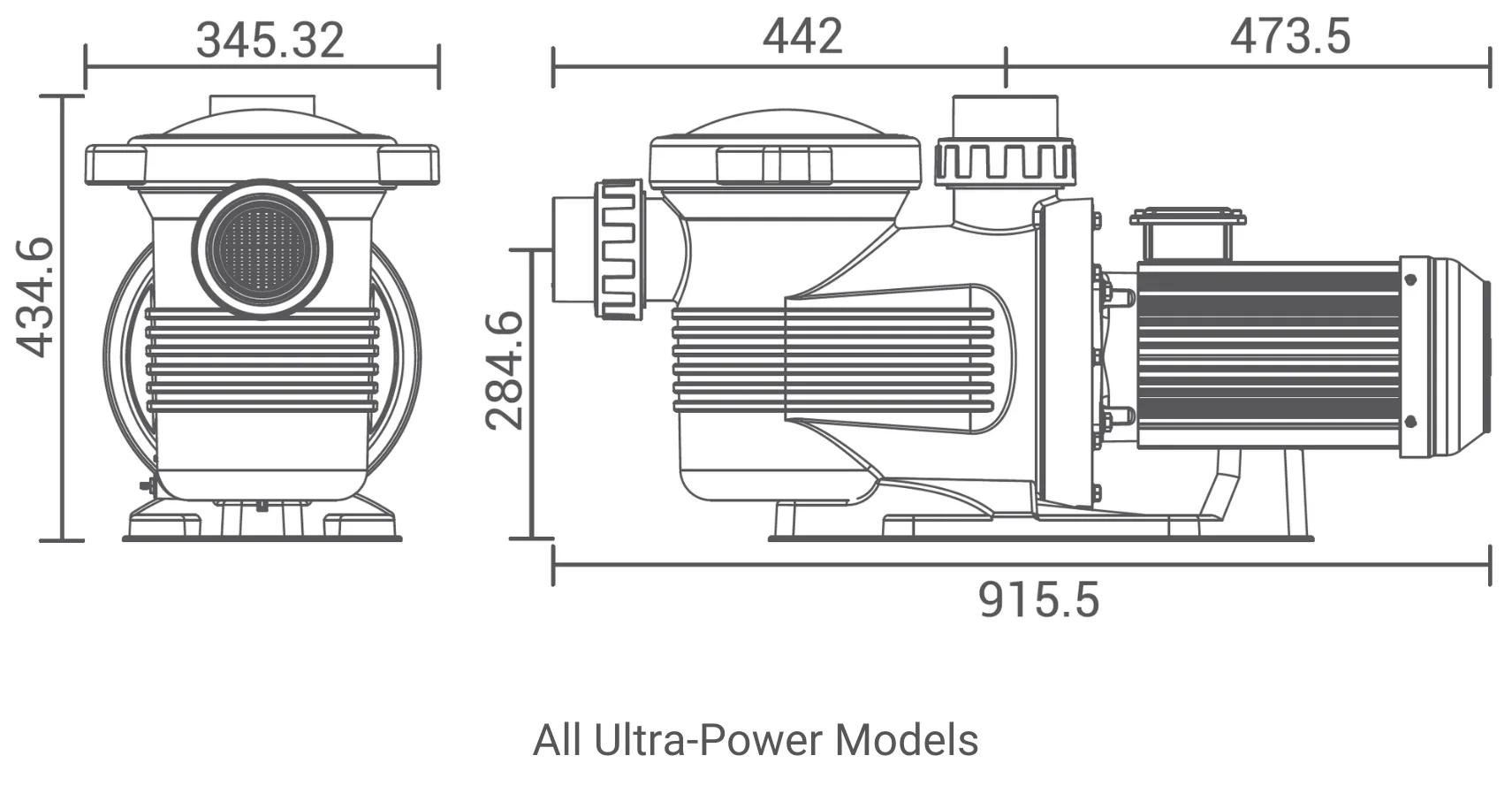

Product Dimensions
( mm )
Technical Information
| Code (400V / 50Hz) | Model | Connection Size | Horse Power ( hp ) | Input Power ( kW ) | Current ( AMP ) | Noise ( dB ) | Flow Rate ( ㎥/h ) @ | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8m | 10m | 12m | 14m | 16m | 18m | |||||||
| 9024401 | UPH400 | 3.0" / 90mm | 4 | 3 | 5.5 | 70 | 64 | 62 | 53 | 42 | 30 | - |
| 9024402 | UPH550 | 3.0" / 90mm | 5.5 | 4 | 8 | 72 | 82 | 75 | 66 | 58 | 43 | 28 |
| 9024403 | UPH700 | 3.0" / 90mm | 7 | 5 | 10 | 72 | 96 | 90 | 82 | 72 | 60 | 45 |
| Code (230V/460V 60Hz) | Model | Connection Size | Horse Power ( hp ) | Input Power ( kW ) | Current ( AMP ) | Noise ( dB ) | Flow Rate ( ㎥/h ) @ | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8m | 10m | 12m | 14m | 16m | 18m | |||||||
| 9024404 | UPH400 | 3.0" / 90mm | 4 | 3 | 5.5 | 70 | 60 | 52 | 45 | 32 | 15 | - |
| 9024405 | UPH550 | 3.0" / 90mm | 5.5 | 4 | 8 | 72 | 70 | 65 | 58 | 50 | 38 | 22 |
| 9024406 | UPH700 | 3.0" / 90mm | 7 | 5 | 10 | 72 | 73 | 70 | 62 | 55 | 42 | 38 |
