Galaxy Single-Element Series Filters

( Cartridge Design )

Galaxy Single-Element Cartridge Filter is built with high-strength and UV-resistant material to prolong the product life. The compact and low height design is suitable for any pool especially with limited system setup space. The extensive dirt-catching capability of the filter element makes this filter highly efficient. A reliable choice for crystal clear water.

Product Features

Tank Material
UV Resistant Plastic
Max Operating Pressure
50psi (3.4bar)
Max Temperature
40°C (104°F)

Product Highlights

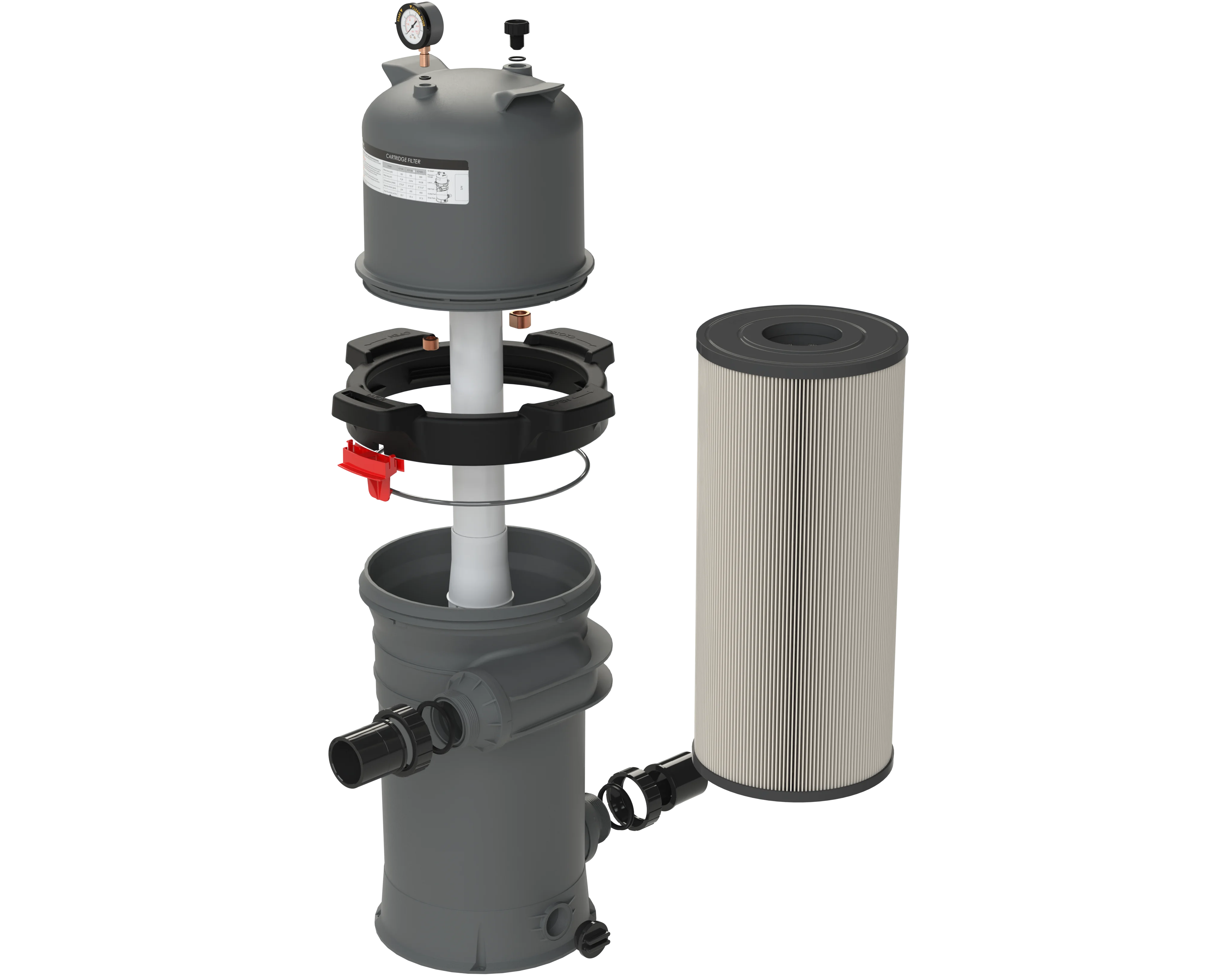

Filter Equipment

Universal standard of union connection

Pressure gauge

Cartridge Filter Element

Filter Advantages

4 x mounting holes
Easy-grip lid handle
Indicative pressure gauge tells you when to service
Knee-height tank base facilitates easy cartridge replacement

Locking ring with quick-release latch allows removing and installing the top tank quickly.
Large water drain makes fast and easy winterisaton.
Simple cleaning and rinsing the filter element with a garden hose.

Big one-piece cartridge element provides a large filtration surface for trapping more dirt and debris. Less cleaning required, and unlike sand filters, needs no backwashing thus saving water and its precious chemicals

Technical Information

Product Data
Code	Model	Filter Area	In/Outlet Connections	Flow Velocity	Max Flow Rate
9140401	ICF100	100 ft² 9.29 ㎡	1.5"/2" - 2"/2.5" 50 - 63 mm	1 gpm/ft² 2.443 ㎥/h/㎡	100 gpm 379 lpm 22.7 ㎥/h
9140402	ICF150	150 ft² 13.94 ㎡	1.5"/2" - 2"/2.5" 50 - 63 mm	0.8 gpm/ft² 1.955 ㎥/h/㎡	120 gpm 454 lpm 27.2 ㎥/h
9140403	ICF200	200 ft² 18.58 ㎡	1.5"/2" - 2"/2.5" 50 - 63 mm	0.6 gpm/ft² 1.466 ㎥/h/㎡	120 gpm 454 lpm 27.2 ㎥/h

Cartridge Element Data
Code	Model	Diameter ( mm )	Height ( mm )	Micron ( μm )	Fold Number
914100004	ICF100-CE	Ø267	497	15	137
914100005	ICF150-CE	Ø267	590	15	172
914100006	ICF200-CE	Ø267	717	15	187
