HD Series Filters
( Deep Bed Design )

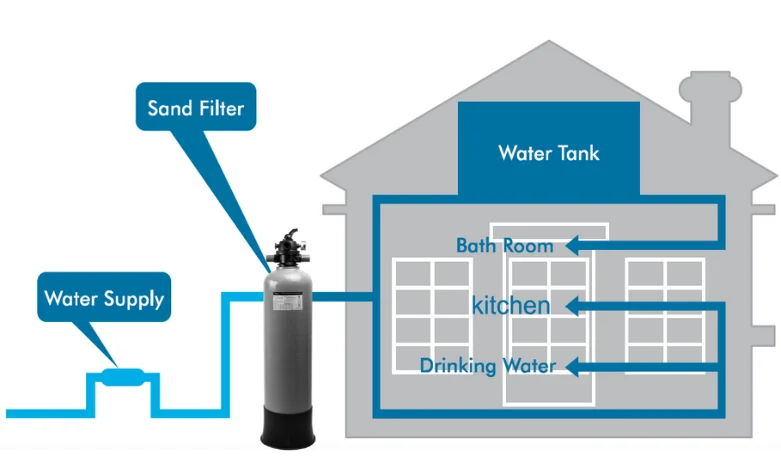

HD Series Deep Bed Filter is designed for filtering incoming water supply for domestic and light commercial use. Undesired particles such as rust, sand, dirt, and other impurities found in water are trapped by the filter bed, offering crystal clear filtered water. Simple operation, ultra-long life, robust weather, and sunlight resistant fiberglass tank.
Product Features
Tank Material
Bobbin Wound Reinforced FiberglassMax Operating Pressure
100psi (7bar)Max Temperature
50°C (122°F)Suggested Size of Media
0.5mm - 0.8mm
Product Highlights
Filter Equipment
Technical Information
| Code | Model | Filter Area ( ㎡ ) | Valve Connections | Max Flow Rate | Sand ( Kg ) |
|---|---|---|---|---|---|
| 88012720 | HD13300 | 0.07 | 1" 33mm | 58.5lpm 3.51㎥/h | 75 |
| 88012721 | HD13350 | 0.1 | 1" 33mm | 68.3lpm 4.1㎥/h | 98 |
| 88012722 | HD13400 | 0.13 | 1" 33mm | 78lpm 4.68㎥/h | 130 |
| 88012723 | HD15300 | 0.07 | 1" 33mm | 53.3lpm 3.21㎥/h | 86 |
| 88012724 | HD15350 | 0.1 | 1" 33mm | 62.5lpm 3.75㎥/h | 118 |
| 88012725 | HD15400 | 0.13 | 1" 33mm | 71.5lpm 4.29㎥/h | 154 |
