Max Series MFS Filters
( Side Mount )
Emaux’s innovative design and advanced technology offer superior filtration performance and crystal clear water. Max series filters are seamless, one-piece blow-molded filter tank in high density polyethylene for heavy duty use and reliability.
Product Features
Tank Material
HDPEMax Operating Pressure
40psi (2.8bar)Max Temperature
50°C (122°F)Suggested Size of Media
0.5mm - 0.8mm
Product Highlights

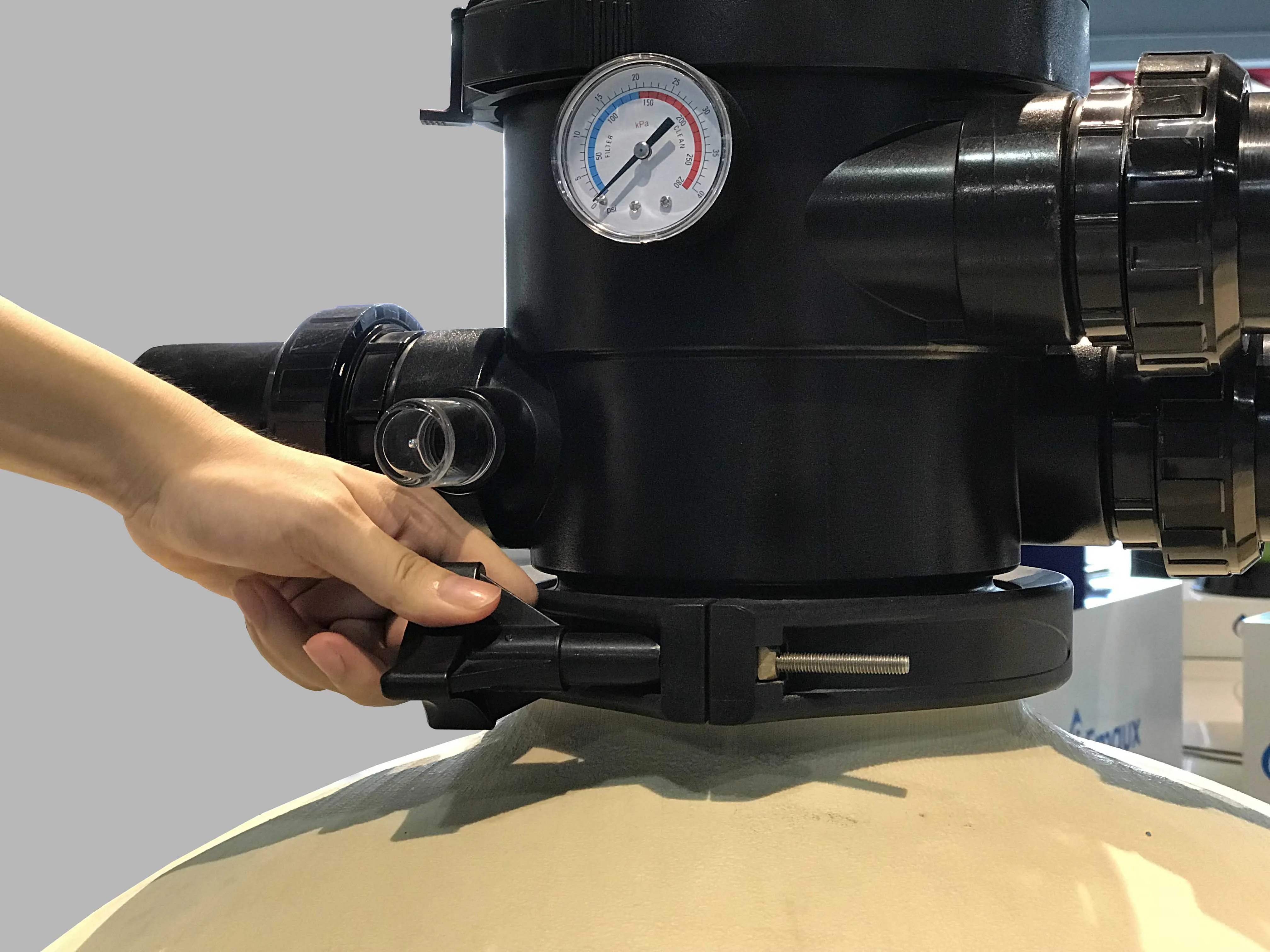

Unique one-piece clamp with screw-type lock design to simplify installation and allows tool-free servicing

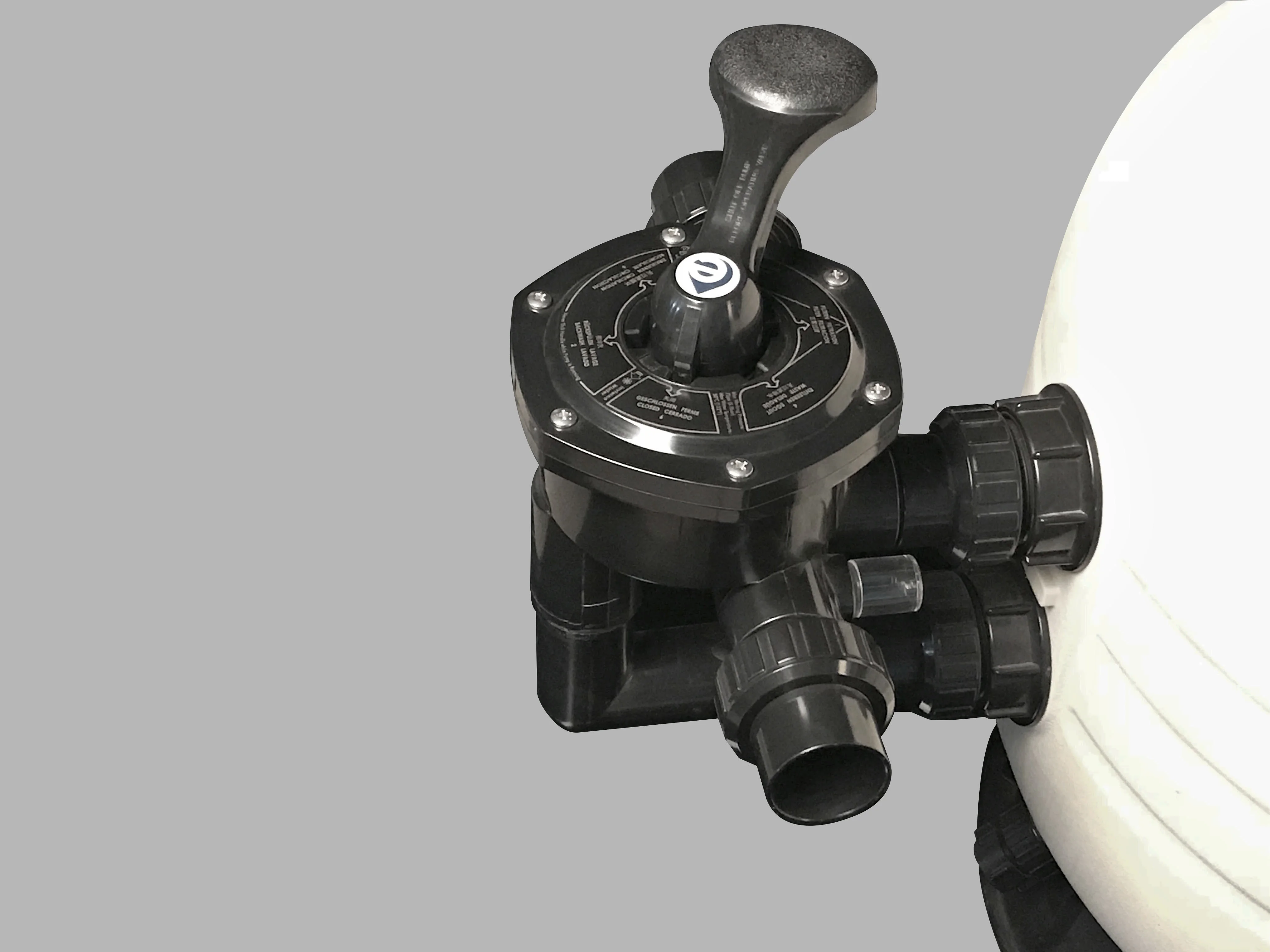

Equipped with a 6-way multiportvalve which is constructed with sturdy ABS and marine-grade stainless steel

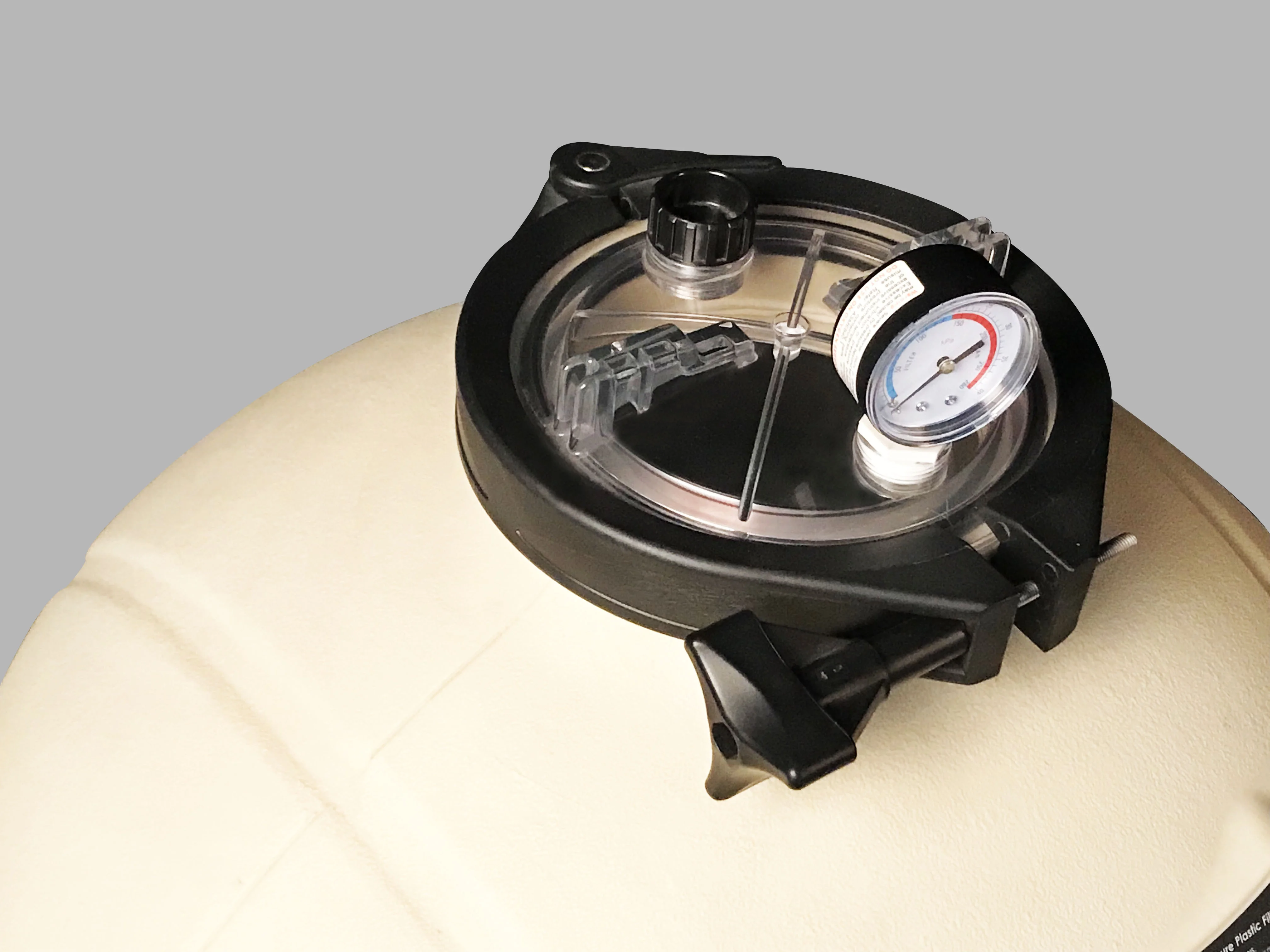

Easy-to-read pressure gauge for easy inspection
Technical Information
| Code | Model | Filter Area ( ㎡ ) | Valve Connections | Max Flow Rate | Sand ( Kg ) |
|---|---|---|---|---|---|
| 88012626 | MFS17 | 0.14 | 1.5" 50mm | 117lpm 7㎥/h | 40 |
| 88012627 | MFS20 | 0.2 | 1.5" 50mm | 167lpm 10㎥/h | 70 |
| 88012628 | MFS24 | 0.28 | 1.5" 50mm | 233lpm 14㎥/h | 125 |
| 88012629 | MFS27A | 0.36 | 1.5" 50mm | 240lpm 14.4㎥/h | 185 |
| 88012630 | MFS27 | 0.36 | 2" 63mm | 300lpm 18㎥/h | 185 |
| 88012631 | MFS31A | 0.47 | 1.5" 50mm | 313lpm 18.8㎥/h | 250 |
| 88012632 | MFS31 | 0.47 | 2" 63mm | 392lpm 23.5㎥/h | 250 |
| 88012633 | MFS35 | 0.61 | 2" 63mm | 508lpm 30.5㎥/h | 325 |
