SR Series Filters
( Side Mount )

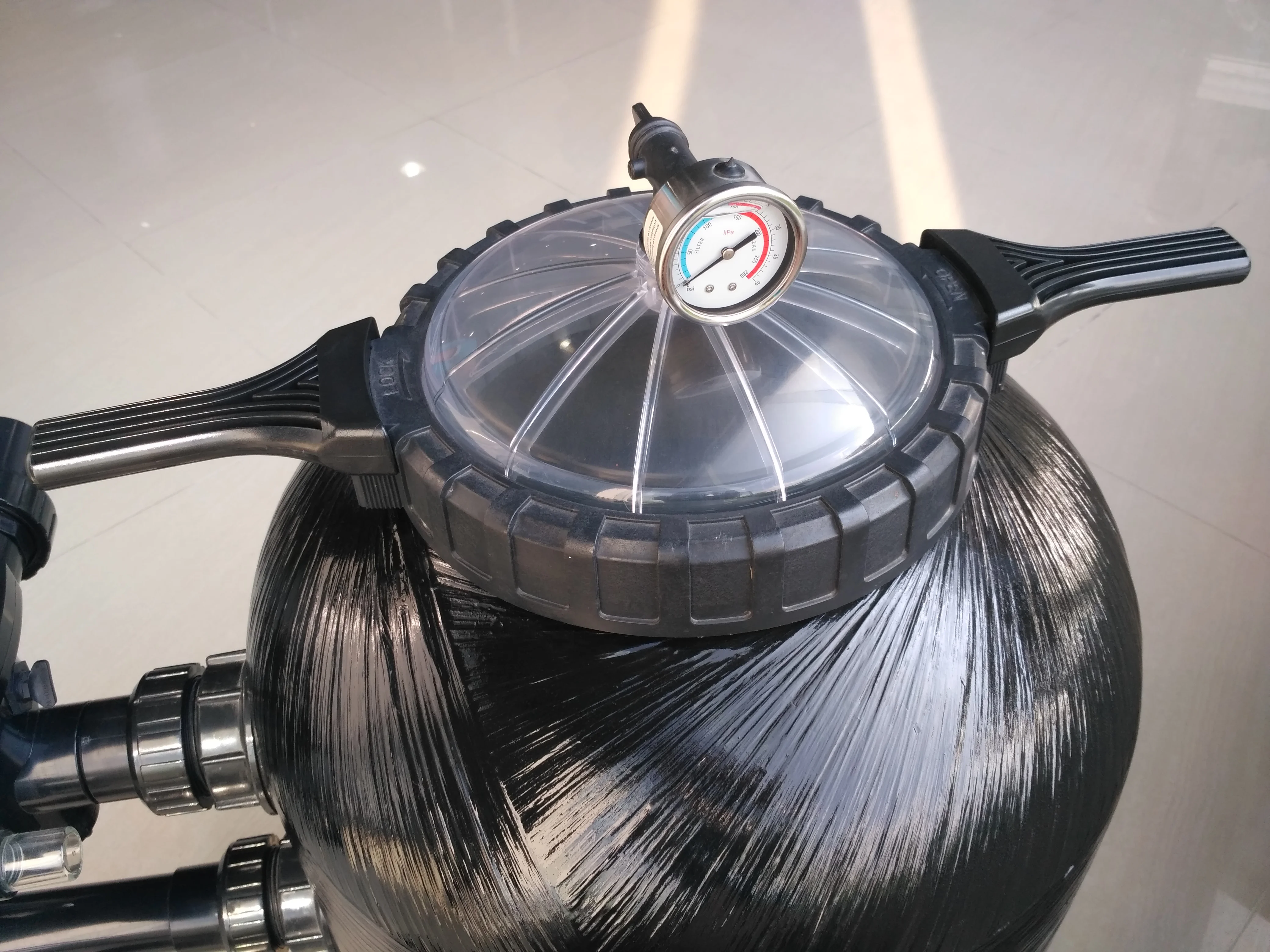

SR Series Ring Lock Filter includes a bobbin-wound fiberglass reinforced tank. With a UV-resistant surface finish, it is able to operate under prolonged sunlight for years of reliability. The transparent lid is designed for easy inspection of the sand bed. Without using any tools, the lid can be removed by turning the specially designed ring-lock, making maintenance much easier.
Product Features
Tank Material
Bobbin Wound Reinforced FiberglassMax Operating Pressure
36psi (2.5bar)Max Temperature
43°C (109°F)Suggested Size of Media
0.5mm - 0.8mm
Product Highlights
Filter Equipment
Technical Information
| Code | Model | Filter Area ( ㎡ ) | Valve Connections | Max Flow Rate | Sand ( Kg ) |
|---|---|---|---|---|---|
| 88011103 | S450R | 0.16 ㎡ | 1.5" 50mm | 135lpm 8.1㎥/h | 45 |
| 88011104 | S500R | 0.22 ㎡ | 1.5" 50mm | 185lpm 11.1㎥/h | 85 |
| 88011105 | S650R | 0.32 ㎡ | 1.5" 50mm | 260lpm 15.6㎥/h | 145 |
| 88011107 | S700R | 0.4 ㎡ | 1.5" 50mm | 325lpm 19.5㎥/h | 210 |
| 88011108 | S700R(B) | 0.41 ㎡ | 2" 63mm | 336lpm 20.16㎥/h | 215 |
| 88011109 | S800R | 0.53 ㎡ | 2" 63mm | 435lpm 24.1㎥/h | 355 |
| 88011110 | S900R | 0.66 ㎡ | 2" 63mm | 550lpm 33㎥/h | 470 |
