Pool Handrails
( Superior Corrosion Resistance, Anchor and Flange Types Available )
Exit handrails and components made of φ42mm tubes in polished stainless steel 304 (or 316 for saltwater pools). Correct selection and proper placement of handrails add a significant measure of safety to every pool area. All exit handrails are available with anchor or flange type fixtures for easy installation.
Exit Handrails

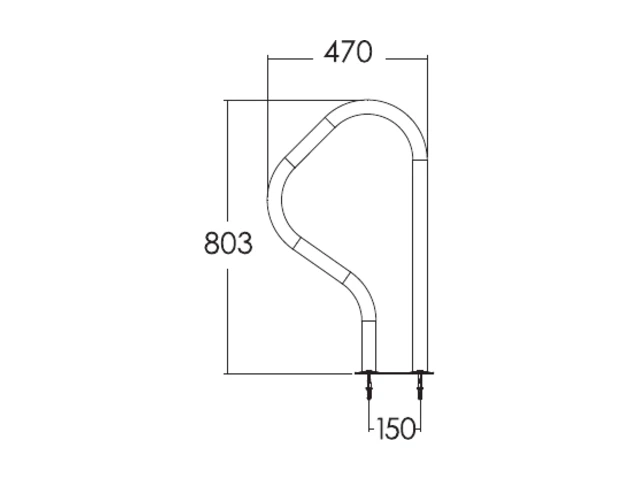

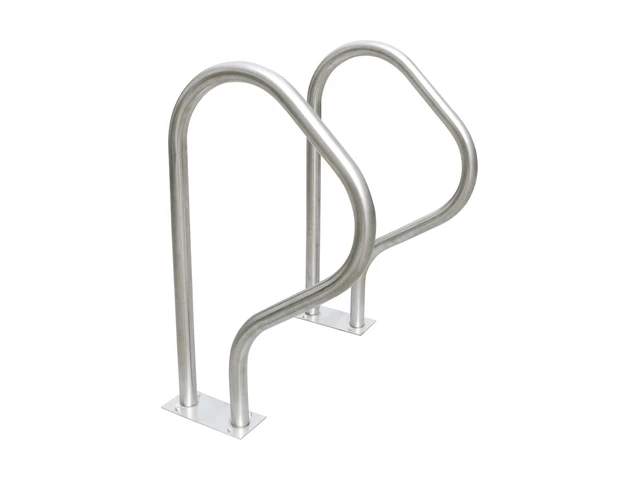

ARB Series
| Code (AISI-304) | Code (AISI-316) | Model | Type |
|---|---|---|---|
| 88074205 | 88074210 | ARB-F | Flange |

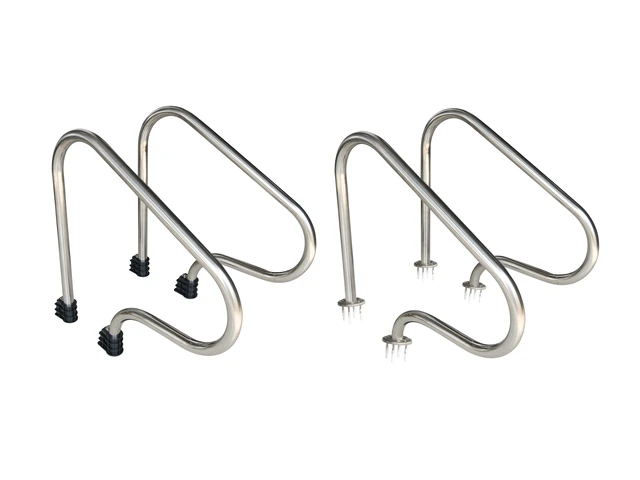

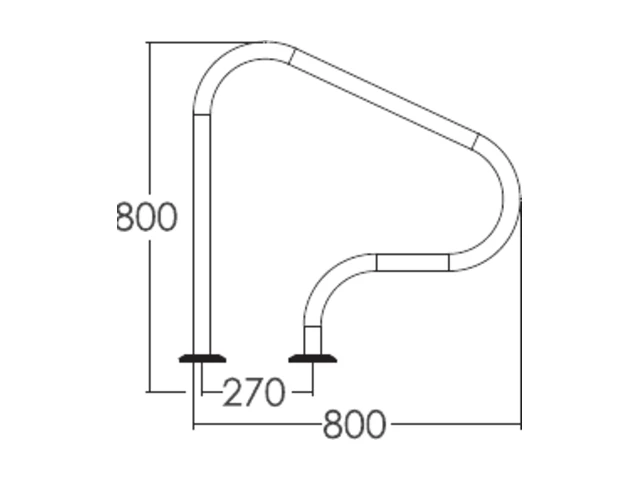

ARP Series
| Code (AISI-304) | Code (AISI-316) | Model | Type |
|---|---|---|---|
| 88073005 | 88073010 | ARP | Anchor |
| 88073605 | 88073610 | ARP-F | Flange |

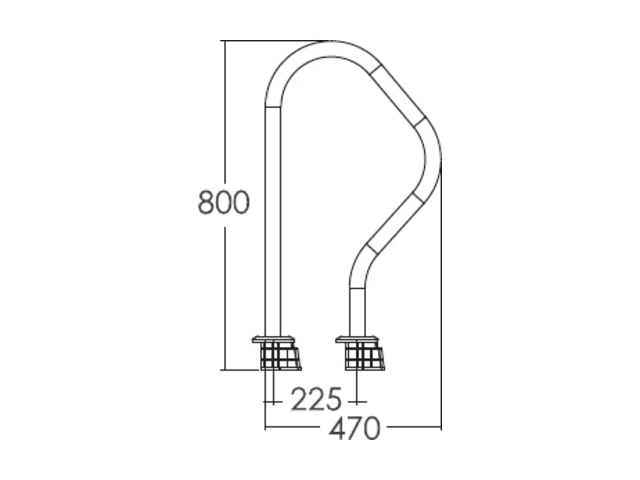

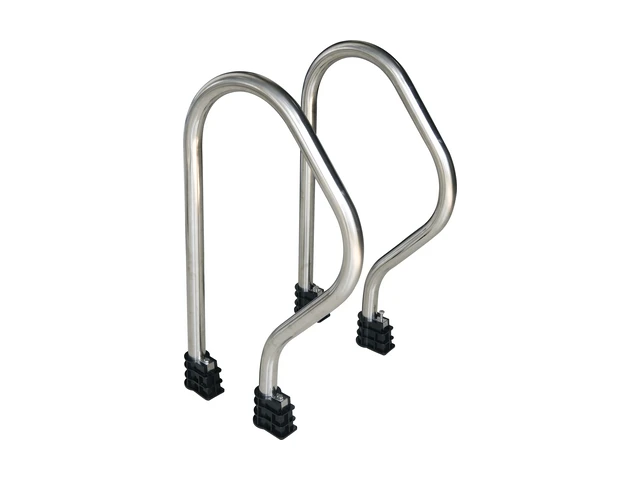

ARV Series
| Code (AISI-304) | Code (AISI-316) | Model | Type |
|---|---|---|---|
| 88073105 | 88073110 | ARV | Anchor |

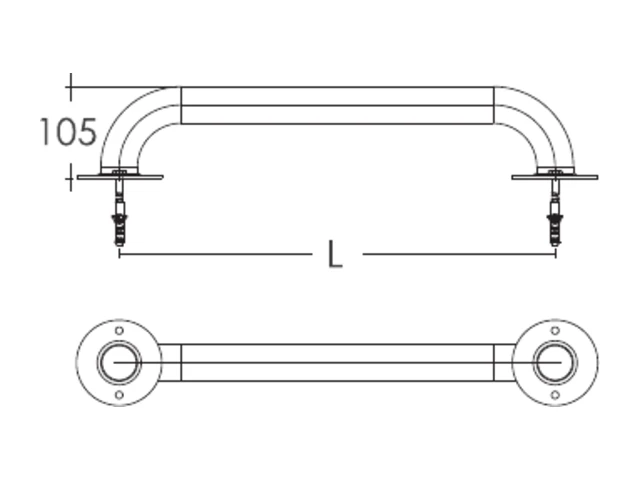

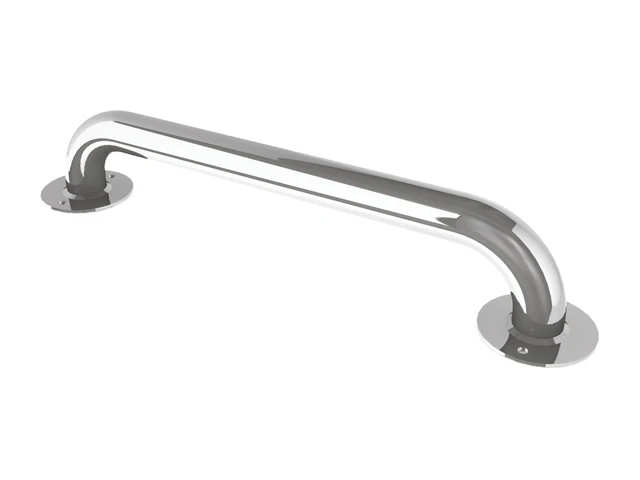

Straight Grabrail
| Code (AISI-304) | Code (AISI-316) | Model | L (mm) |
|---|---|---|---|
| 88076417 | 88076423 | L50 | 500 |
| 88076418 | 88076424 | L100 | 1000 |
| 88076419 | 88076425 | L150 | 1500 |
| 88076420 | 88076426 | L200 | 2000 |
| 88076421 | 88076427 | L250 | 2500 |
| 88076422 | 88076428 | L300 | 3000 |
Other Components

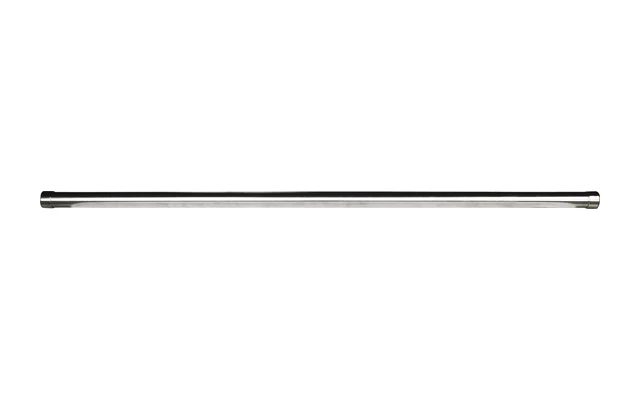

Straight Handrails
Handrail length in 1m
| Code | Type |
|---|---|
| 03016221 | AISI-304 |
| 03016220 | AISI-316 |

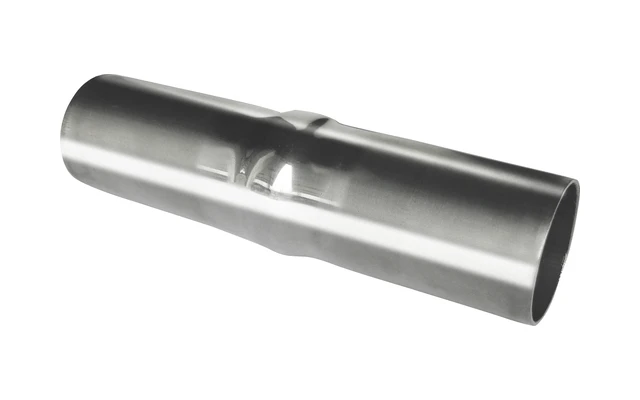

Straight Connector
For joining the φ42mm pipe
| Code | Type |
|---|---|
| 03016223 | AISI-304 |
| 03016222 | AISI-316 |

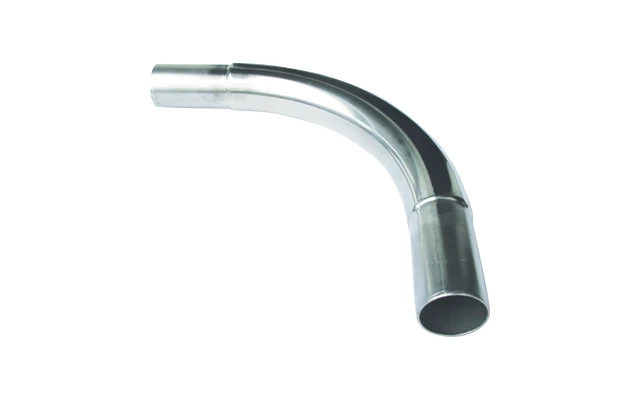

Curved Connector
For joining the φ42mm pipe
| Code | Type |
|---|---|
| 03016225 | AISI-304 |
| 03016224 | AISI-316 |

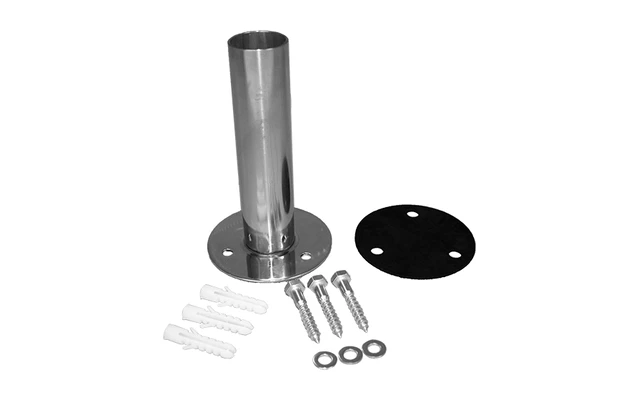

Flange Connection
For anchor ladder (pair)
| Code | Type |
|---|---|
| 08070007 | AISI-304 |
| 08070008 | AISI-316 |

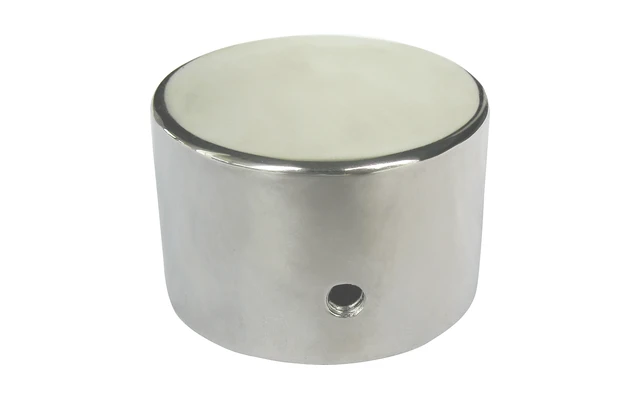

End Cap
For the end of φ42mm pipe
| Code | Type |
|---|---|
| 03016227 | AISI-304 |
| 03016226 | AISI-316 |

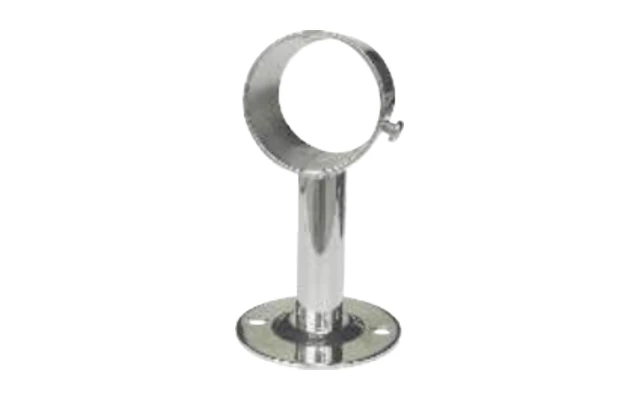

Straight Bracket with Base Plate
Applicable for both concrete and vinyl pool
| Code | Type |
|---|---|
| 08070002 | AISI-304 |
| 08070001 | AISI-316 |
