Shower Head
( 7 water patterns are available for your choice )
EXPERIENCE WATER IN DIFFERENT WAYS!
Enjoy hydrotherapy shower using all physical properties of water to create a new experience. Emaux powerful shower heads are designed to offer excellent showering massage experience.
Product Features:- Stainless Steel AISI-304 tube
- Chrome plated heads
- Hydrotherapy shower effects
- Unique design with excellent waterproofing and corrosion resistance
- Easy installation and maintenance
Shower Head Models

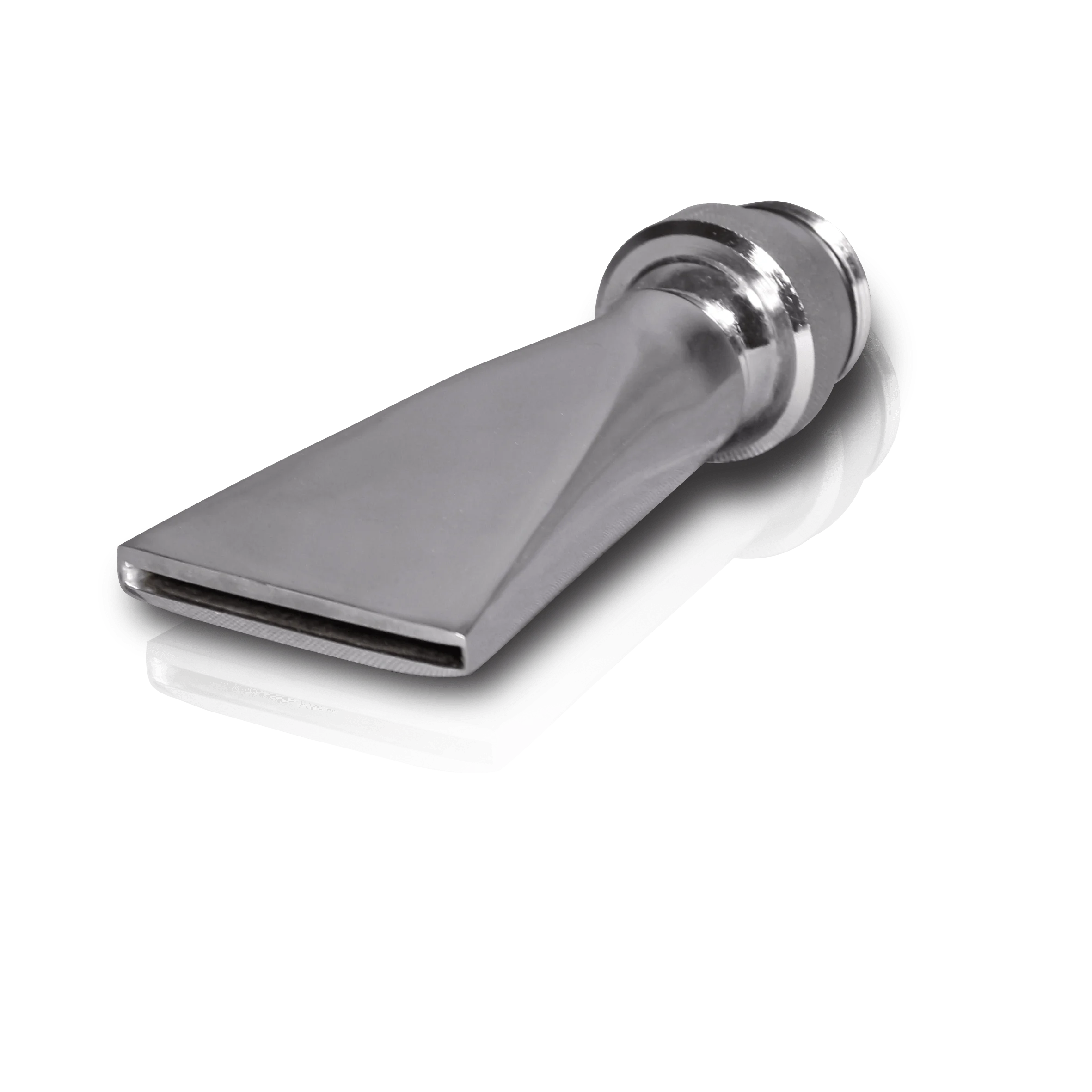

FAST SPRAY
EM4401

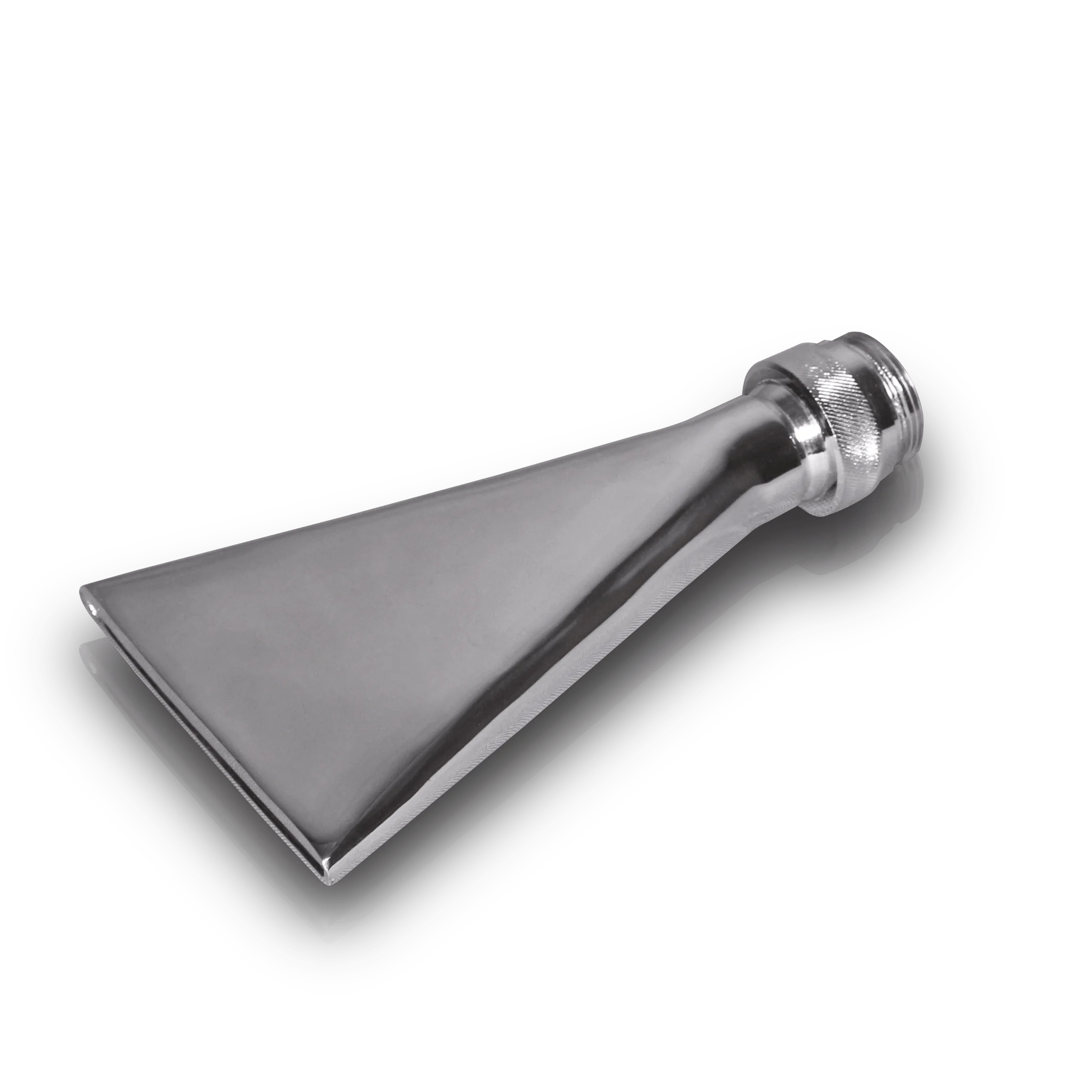

FULL BODY SPRAY
EM4402

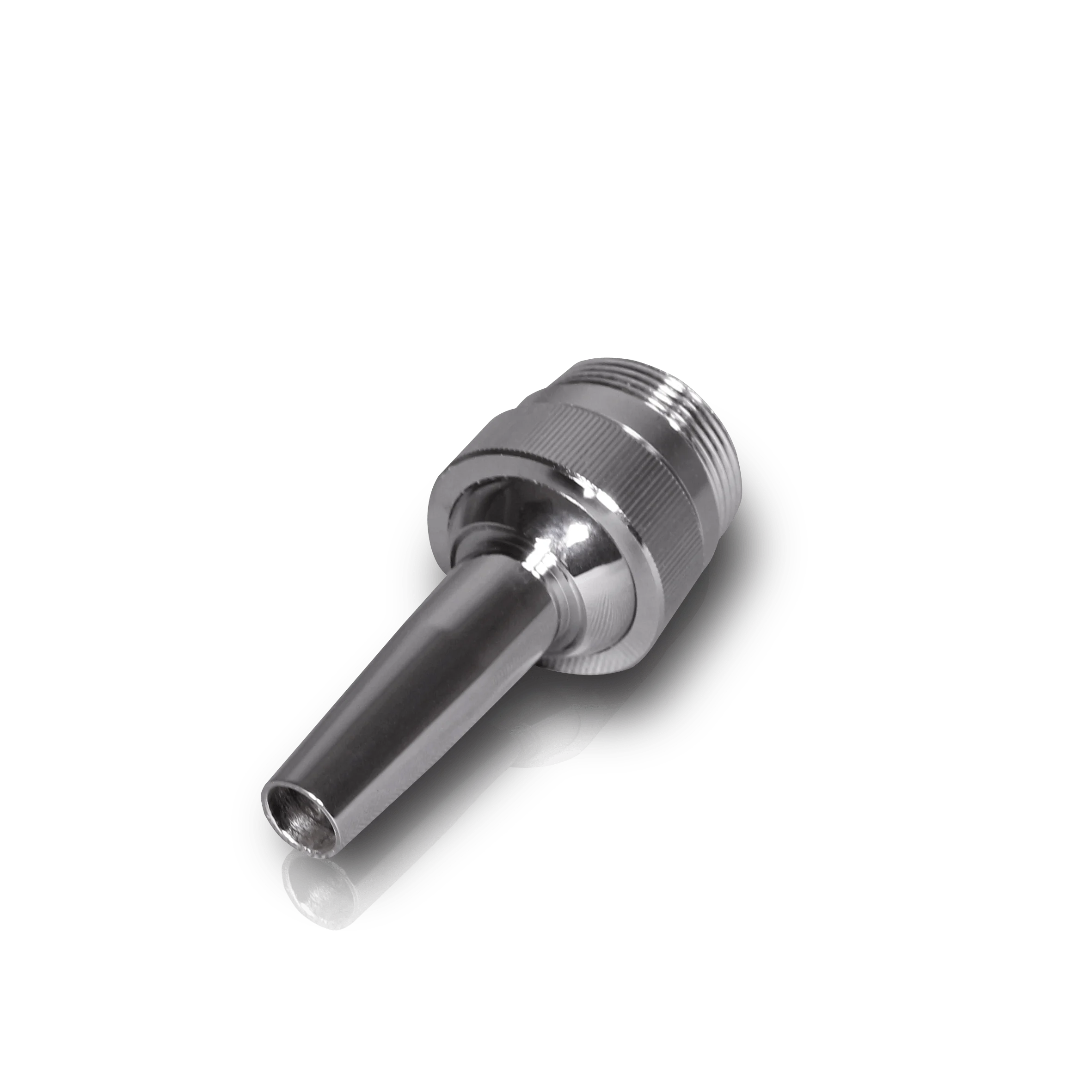

INTENSE JET SPRAY
EM4403

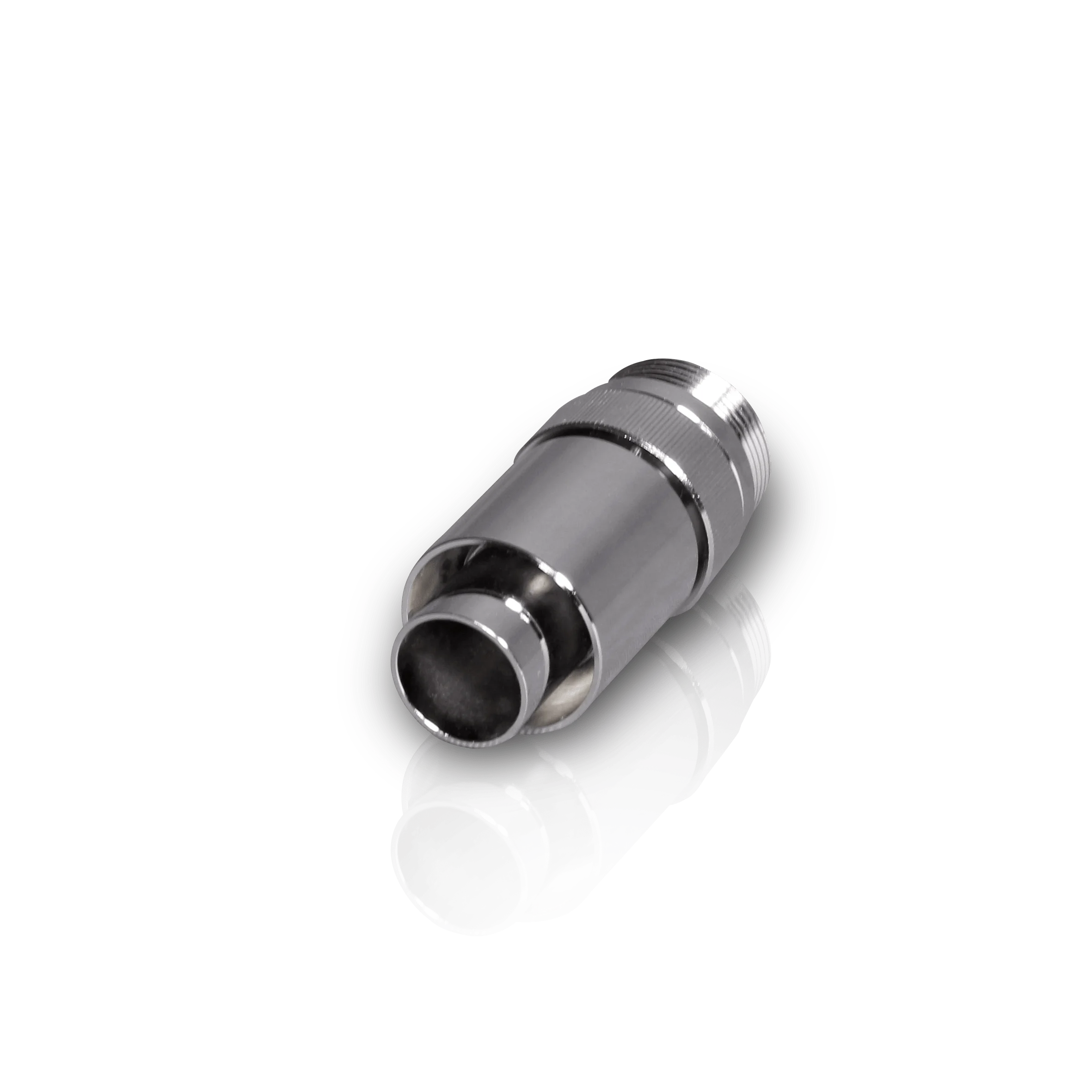

JET SPRAY
EM4404

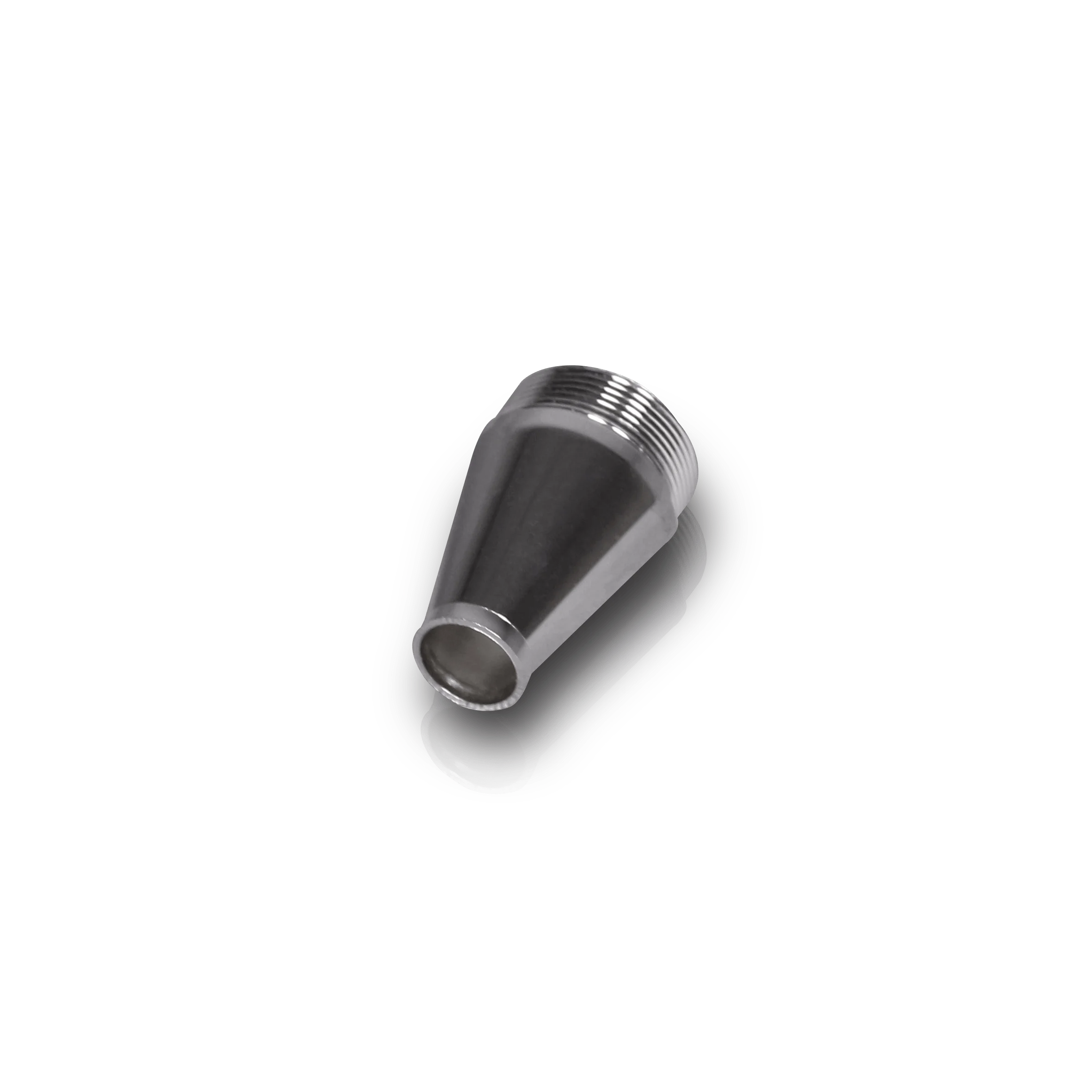

JET MASSAGE
EM4405

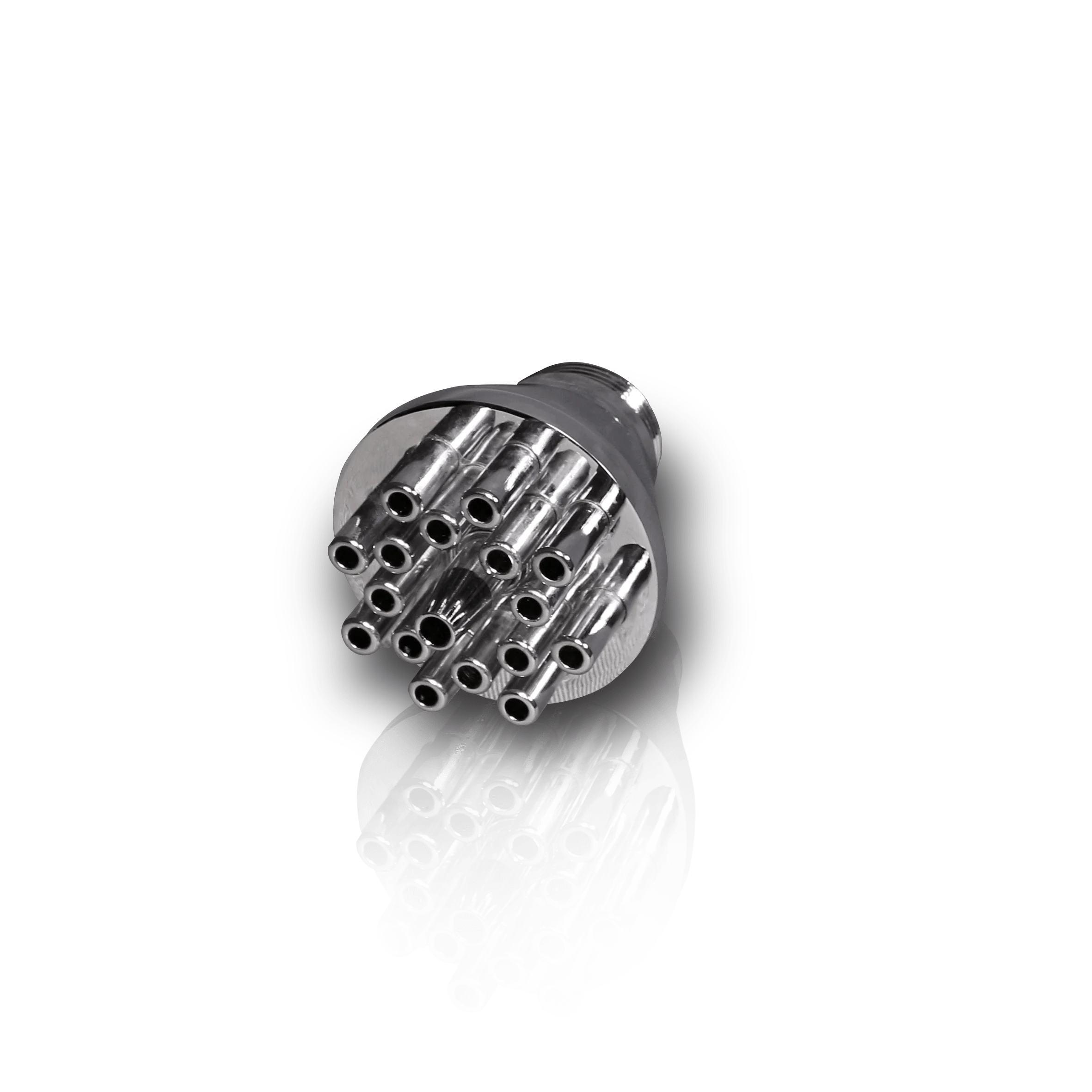

MASSAGE SPRAY
EM4406

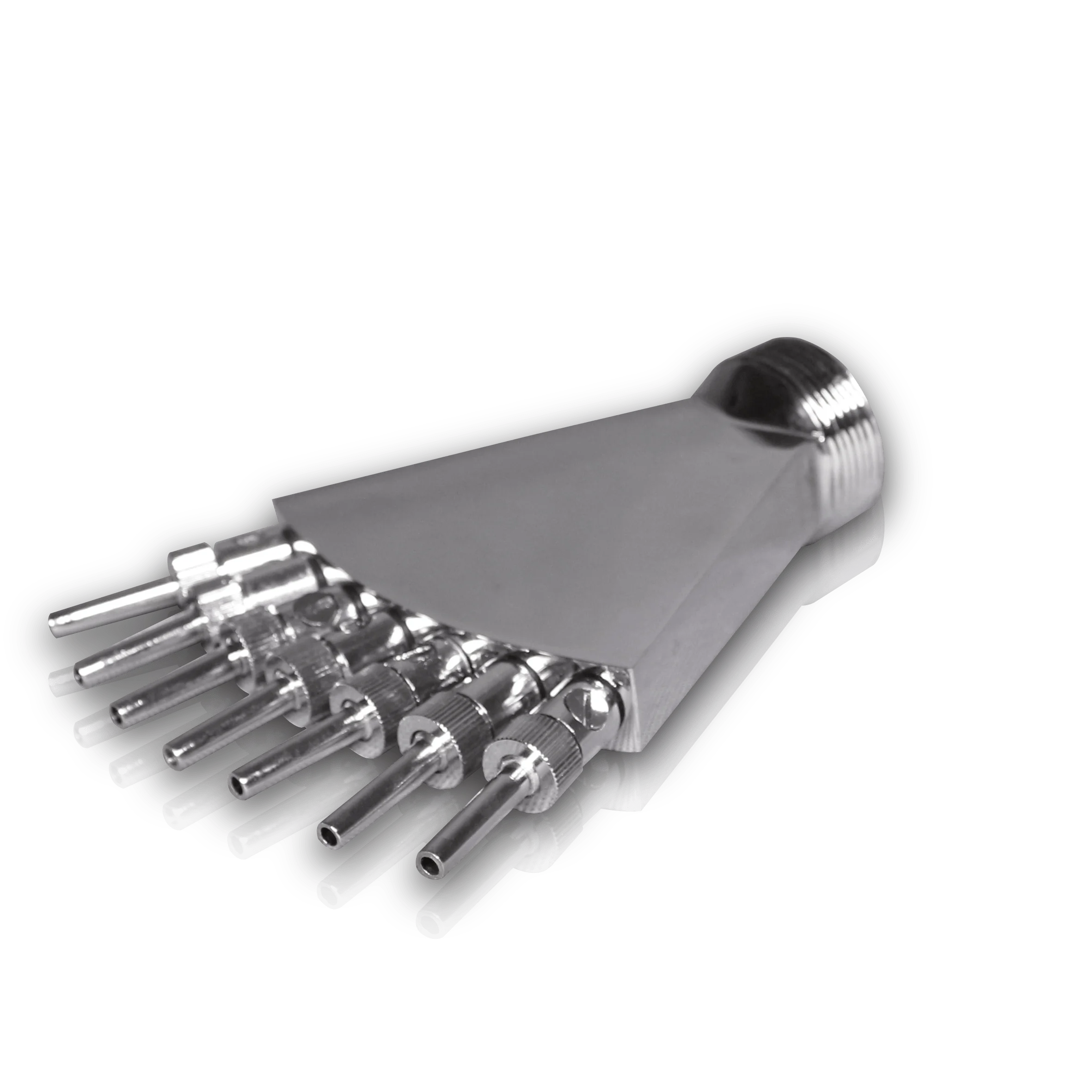

SOFT SPRAY
EM4407
Technical Information
| Code | Model No. | Product Name | Connection Dimensions | Pressure ( Kpa ) | Flow Rate ( m³/h ) | Pattern | Min Pump Head | A ( mm ) | B ( mm ) |
|---|---|---|---|---|---|---|---|---|---|
| 91602001 | EM4401 | Fast Spray | 1.5" / 50mm | 20 - 100 | 14.0 - 48.4 | Universal Type | 2m | 663 | 946 |
| 91602002 | EM4402 | Full Body Spray | 1.5" / 50mm | 20 - 100 | 14.0 - 48.4 | Universal Type | 2m | 705 | 902 |
| 91602003 | EM4403 | Intense Jet Spray | 1.5" / 50mm | 20 - 250 | 5.8 - 24.0 | Universal Type | 2m | 630 | 962 |
| 91602004 | EM4404 | Jet Spray | 1.5" / 50mm | 20 - 120 | 18.0 - 50.0 | Fixed Type | 2m | 628 | 968 |
| 91602005 | EM4405 | Jet Massage | 1.5" / 50mm | 20 - 100 | 14.0 - 48.4 | Fixed Type | 2m | 553 | 1016 |
| 91602006 | EM4406 | Massage Spray | 1.5" / 50mm | 20 - 60 | 5.7 - 12.0 | Fixed Type | 2m | 598 | 986 |
| 91602006 | EM4407 | Soft Spray | 1.5" / 50mm | 20 - 80 | 0.6 - 1.1 | Universal Type | 2m | 655 | 958 |
