Water Descent
( Vibrant Colorful Waterfall )
Make your pool alive!
Water Descent is one of the most beautiful ornamental features for your pool or spa. Creating a water movement in your pool, it may be adjusted from a peaceful sheet of water falling into the pool, to a relaxing water massage for your back, adding elegance and style to your pool.
With the optional RGB LED strip, the unit provides you vibrant colorful waterfall which adds visual interest and soothing sound of flowing water to your landscape.
Product Features:- Available in two different widths: 25 mm and 150 mm, they are suitable for different wall sizes.
- Four different lengths: 300 mm, 600 mm, 900 mm and 1200 mm.
- LED strip is powered by external 12V DC, which is safe and reliable.
- The LEDs can be operated through panel or remote control and 10 lighting patterns are available.
- Multiple water descents can share the same controller for synchronized color effects.

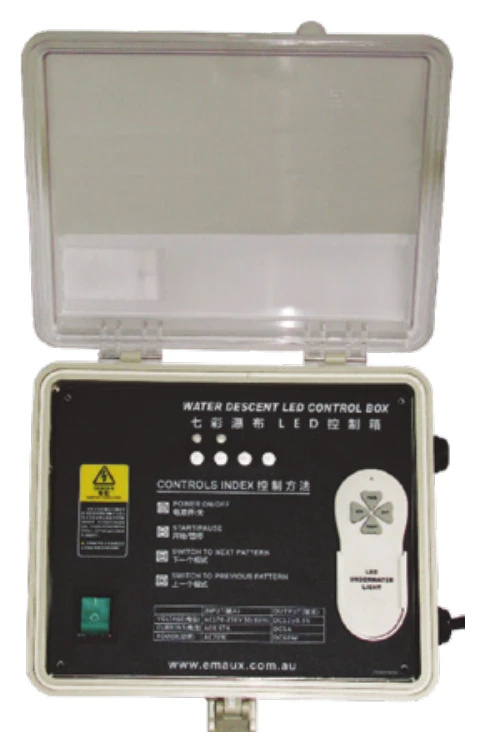

LED Water Descent Control Box
Instead of using fiber optics, the LED strip is built into the unit placing the light source as close as possible to the waterfall. This design creates a wonderful illumination to the water falling into the pool.
10 pre-programmed LED lighting effects allow you to create the best luminous water features in your hands.
| Code | 9110401 |
|---|---|
| Model | WTD-CB |
| Input Power | 110-220V AC ±15%; 50/60Hz |
| Output Power | 12V DC: 60W |
| Remote Controller | Included |
PB Series
This model provides an excellent water effect with a fine sheet of water falling like a mountain spring waterfall.
Product Information

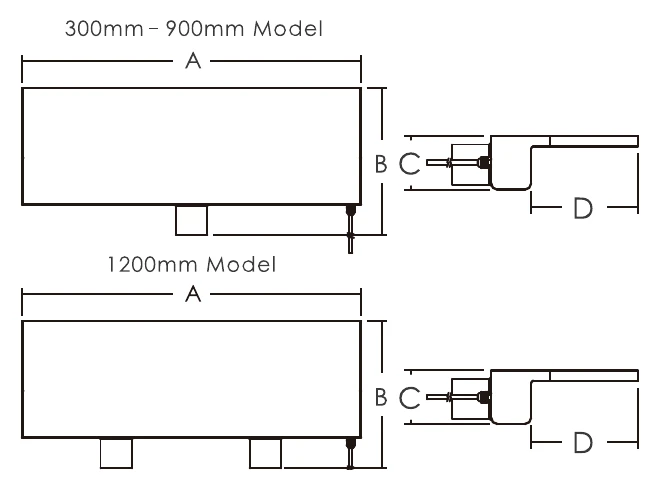

| Code (LED) | Model (LED) | Code | Model | A (mm) | B (mm) | C (mm) | D (mm) | Remark |
|---|---|---|---|---|---|---|---|---|
| 9090001 | PB300-25(L) | 9090101 | PB300-25 | 306 | 138 | 76 | 25 | 12V DC 4W |
| 9090002 | PB300-150(L) | 9090102 | PB300-150 | 306 | 263 | 76 | 150 | 12V DC 4W |
| 9090004 | PB600-25(L) | 9090104 | PB600-25 | 606 | 138 | 76 | 25 | 12V DC 8W |
| 9090005 | PB600-150(L) | 9090105 | PB600-150 | 606 | 263 | 76 | 150 | 12V DC 8W |
| 9090007 | PB900-25(L) | 9090107 | PB900-25 | 906 | 138 | 76 | 25 | 12V DC 12W |
| 9090008 | PB900-150(L) | 9090108 | PB900-150 | 906 | 263 | 76 | 150 | 12V DC 12W |
| 9090010 | PB1200-25(L) | 9090110 | PB1200-25 | 1206 | 138 | 76 | 25 | 12V DC 17W |
| 9090011 | PB1200-150(L) | 9090111 | PB1200-150 | 1206 | 263 | 76 | 150 | 12V DC 17W |

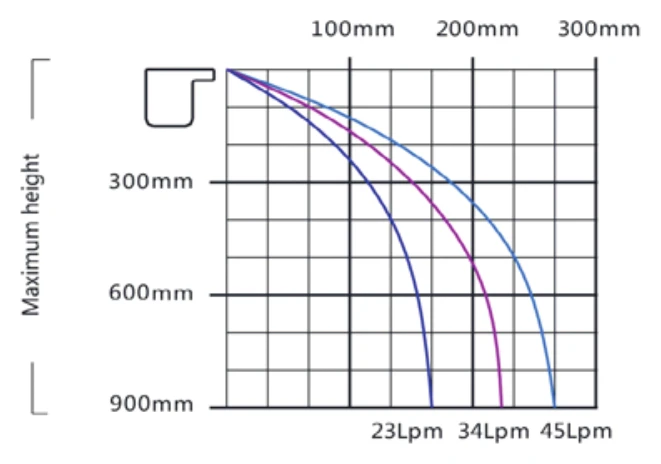

Note 1: The flow chart corresponds to the water descent with length 300 mm. For a length of 600 mm, the flow rate required is double, for 900 mm three times and for 1200 mm four times.

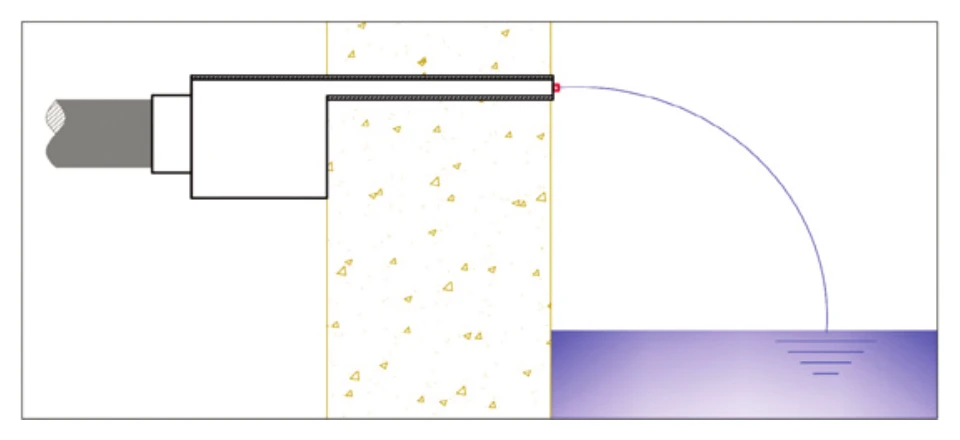

Note 2: Water descents are only to be used with filtered water. If the water flow rate or water pressure is higher, it has to be diverted to the pool. Check the charts for each water descent, which relate flow rate, trajectory and height of water descent.
